10-CW325-25 Flexaust CW-325 (CW325) 10 inch Air and Fume Duct Hose - 25ft

10-CW325-25 by Flexaust | #1601000025 | CW-325 Series | Air and Fume Duct Hose | 10 inch | 25ft

Save $68.56

$685.56

$685.56 - $685.56

$685.56

$617.00

$617.00 - $617.00

$617.00

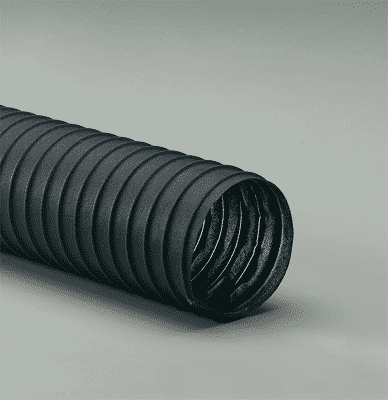

Flexaust Heat-Flex CW-325 (CW325) Air and Fume Duct Hose Single-ply black acrylic coated polyester fabric hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: 10-CW325-25 Flexaust \| 25 \|
Brand:	Heat-Flex
Series:	CW-325
Hose Color(s):	Black
Internal Diameter:	10in
Tubing Construction:	Acrylic Coated Polyester

SPECIFICATIONS

Other Features:
Applications:	Automotive, Chemical Fume Extraction, Diesel, Engine, Fume, and Garage Exhaust, Dry Cleaning, Drying Systems, Glass Drying, Landfill Venting, Ozone, Paper Mills, Plastics Industry, Pollution Control, Welding Fume Extraction	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Single-ply black acrylic coated polyester fabric
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-20 deg. F to 325 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Ideal for air & fume handling applications. Excellent choice for overhead vehicle exhaust systems. Light weight & flexible. Listed as UL 94V-0 flame retardant.

Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)
CW-325 2in	2"	N/A	1.6"	4:1	29	30	6.25 lbs
CW-325 2.5in	2.5"	N/A	1.78"	4:1	29	30	6.5 lbs
CW-325 3in	3"	N/A	2.3"	5:1	29	30	7 lbs
CW-325 4in	4"	N/A	2.8"	5:1	29	18	10.25 lbs
CW-325 5in	5"	N/A	3.5"	5:1	16	14	15 lbs
CW-325 6in	6"	N/A	3.8"	6:1	14	7	17.25 lbs
CW-325 8in	8"	N/A	5.2"	6:1	7	5	23 lbs
CW-325 10in	10"	N/A	6.4"	6:1	6	4	23 lbs
CW-325 12in	12"	N/A	8"	6:1	5	3.7	50 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
