2-CW325-25 by Flexaust | #1600200025 | CW-325 Series | Air and Fume Duct Hose | 2 inch | 25ft

Save $19.41 Save $19.41
Original price $194.08
Original price $194.08 - Original price $194.08
Original price $194.08
Current price $174.67
$174.67 - $174.67
Current price $174.67

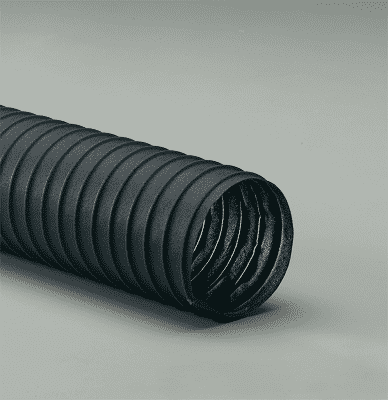

Flexaust Heat-Flex CW-325 (CW325) Air and Fume Duct Hose Single-ply black acrylic coated polyester fabric hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2-CW325-25 Flexaust | 25 |
Brand: Heat-Flex
Series: CW-325
Hose Color(s): Black
Internal Diameter: 2in
Tubing Construction: Acrylic Coated Polyester

SPECIFICATIONS

Applications: Automotive, Chemical Fume Extraction, Diesel, Engine, Fume, and Garage Exhaust, Dry Cleaning, Drying Systems, Glass Drying, Landfill Venting, Ozone, Paper Mills, Plastics Industry, Pollution Control, Welding Fume Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply black acrylic coated polyester fabric
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -20 deg. F to 325 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ideal for air & fume handling applications.
  • Excellent choice for overhead vehicle exhaust systems.
  • Light weight & flexible.
  • Listed as UL 94V-0 flame retardant.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
CW-325 2in 2" N/A 1.6" 4:1 29 30 6.25 lbs
CW-325 2.5in 2.5" N/A 1.78" 4:1 29 30 6.5 lbs
CW-325 3in 3" N/A 2.3" 5:1 29 30 7 lbs
CW-325 4in 4" N/A 2.8" 5:1 29 18 10.25 lbs
CW-325 5in 5" N/A 3.5" 5:1 16 14 15 lbs
CW-325 6in 6" N/A 3.8" 6:1 14 7 17.25 lbs
CW-325 8in 8" N/A 5.2" 6:1 7 5 23 lbs
CW-325 10in 10" N/A 6.4" 6:1 6 4 23 lbs
CW-325 12in 12" N/A 8" 6:1 5 3.7 50 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
