5-Flex-Tube-TR-25 Flexaust Flex-Tube TR 5 inch Fume and Dust Duct Hose - 25ft
5-Flex-Tube-TR-25 Flexaust Flex-Tube TR 5 inch Fume and Dust Duct Hose - 25ft
5-Flex-Tube-TR-25 Flexaust Flex-Tube TR 5 inch Fume and Dust Duct Hose - 25ft
5-Flex-Tube-TR-25 Flexaust Flex-Tube TR 5 inch Fume and Dust Duct Hose - 25ft

5-Flex-Tube-TR-25 by Flexaust | #3510050025 | Flex-Tube TR | Fume and Dust Duct Hose | 5 inch | 25ft

Save $145.17 Save $145.17
$362.92
$362.92 - $362.92
$362.92
$217.75
$217.75 - $217.75
$217.75

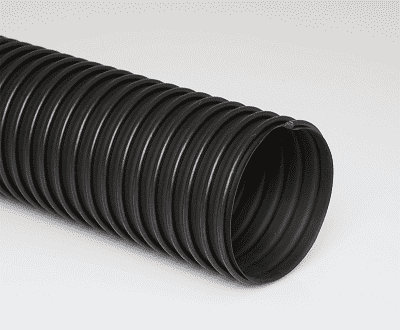

Flexaust Flex-Tube® TR

Medium weight black co-extruded thermoplastic rubber hose with a rigid black external polypropylene helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 5-Flex-Tube-TR-25 Flexaust | 25 |
Brand: Flex-Tube
Series: Flex-Tube TR
Hose Color(s): Black
Internal Diameter: 5in
Tubing Construction: Thermoplastic Rubber
Special Properties: Outer Helix Protection

SPECIFICATIONS

Applications: Industrial Vacuum Cleaners, Textile Fiber Collection SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight black co-extruded thermoplastic rubber
Reinforcement: Rigid black external polypropylene helix Cover: N/A
Temperature Range: -60 deg. F to 275 deg. F Intermittent to 300 deg. Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ultra smooth interior assures efficient airflow.
  • Very flexible & crush resistant.
  • Tight bend radius.
  • Moisture & chemical resistant.
  • Designed for applications with wide temperature ranges.
  • Spiral co-extruded engineered construction.
  • Helix acts as a wearstrip.
Part Number
25 ft Reels		 Part Number
50 ft Reels		 Inside
Diameter		 Wall Thickness
(In)		 Centerline
Bend Radius (In)		 Compression
Ratio		 Negative Pressure
(In/Hg)		 Working Pressure
(PSI)		 Weight - 25ft
(Lbs)		 Weight - 50ft
(Lbs)
Flx-Tube TR 1in Flx-Tube TR 1in 1" 0.022" 1.25" 2:1 29 35 2.25 lbs 4.5 lbs
Flx-Tube TR 1.25in Flx-Tube TR 1.25in 1.25" 0.24" 1.6" 2:1 29 28 3.25 lbs 6.5 lbs
Flx-Tube TR 1.5in Flx-Tube TR 1.5in 1.5" 0.026" 1.85" 2:1 29 23 4.25 lbs 8.5 lbs
Flx-Tube TR 1.75in Flx-Tube TR 1.75in 1.75" 0.026" 2.25" 2:1 29 18 4.75 lbs 9.5 lbs
Flx-Tube TR 2in Flx-Tube TR 2in 2" 0.026" 3.5" 2:1 29 20 6 lbs 12 lbs
Flx-Tube TR 2.5in Flx-Tube TR 2.5in 2.5" 0.026" 4.3" 2:1 24 17 8.25 lbs 16.5 lbs
Flx-Tube TR 3in Flx-Tube TR 3in 3" 0.026" 4.5" 2:1 20 15 9 lbs 18 lbs
Flx-Tube TR 4in Flx-Tube TR 4in 4" 0.026" 5" 2:1 16 12 10 lbs 20 lbs
Flx-Tube TR 5in Flx-Tube TR 5in 5" 0.026" 6" 2:1 15 15 17.5 lbs 35 lbs
Flx-Tube TR 6in Flx-Tube TR 6in 6" 0.035" 7" 2:1 14 18 20 lbs 40 lbs
Flx-Tube TR 7in Flx-Tube TR 7in 7" 0.035" 8" 2:1 12 16 23.75 lbs 47.5 lbs
Flx-Tube TR 8in Flx-Tube TR 8in 8" 0.035" 9.75" 2:1 8 15 28.25 lbs 56.5 lbs
Flx-Tube TR 10in N/A 10" 0.040" 11" 2:1 6 10 37.5 lbs 75 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
