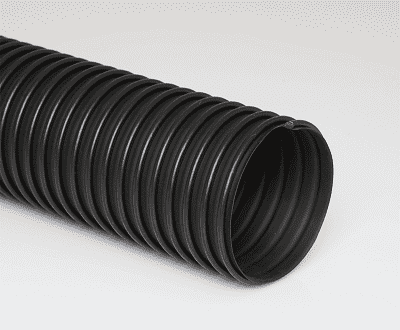

Flexaust Flex-Tube® TR

Medium weight black co-extruded thermoplastic rubber hose with a rigid black external polypropylene helix.

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: 7-Flex-Tube-TR-25 Flexaust \| 25 \|
Brand:	Flex-Tube
Series:	Flex-Tube TR
Hose Color(s):	Black
Internal Diameter:	7in
Tubing Construction:	Thermoplastic Rubber
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Applications:	Industrial Vacuum Cleaners, Textile Fiber Collection	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Medium weight black co-extruded thermoplastic rubber
Reinforcement:	Rigid black external polypropylene helix	Cover:	N/A
Temperature Range:	-60 deg. F to 275 deg. F Intermittent to 300 deg.	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Ultra smooth interior assures efficient airflow. Very flexible & crush resistant. Tight bend radius. Moisture & chemical resistant. Designed for applications with wide temperature ranges. Spiral co-extruded engineered construction. Helix acts as a wearstrip.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs)	Weight - 50ft (Lbs)
Flx-Tube TR 1in	Flx-Tube TR 1in	1"	0.022"	1.25"	2:1	29	35	2.25 lbs	4.5 lbs
Flx-Tube TR 1.25in	Flx-Tube TR 1.25in	1.25"	0.24"	1.6"	2:1	29	28	3.25 lbs	6.5 lbs
Flx-Tube TR 1.5in	Flx-Tube TR 1.5in	1.5"	0.026"	1.85"	2:1	29	23	4.25 lbs	8.5 lbs
Flx-Tube TR 1.75in	Flx-Tube TR 1.75in	1.75"	0.026"	2.25"	2:1	29	18	4.75 lbs	9.5 lbs
Flx-Tube TR 2in	Flx-Tube TR 2in	2"	0.026"	3.5"	2:1	29	20	6 lbs	12 lbs
Flx-Tube TR 2.5in	Flx-Tube TR 2.5in	2.5"	0.026"	4.3"	2:1	24	17	8.25 lbs	16.5 lbs
Flx-Tube TR 3in	Flx-Tube TR 3in	3"	0.026"	4.5"	2:1	20	15	9 lbs	18 lbs
Flx-Tube TR 4in	Flx-Tube TR 4in	4"	0.026"	5"	2:1	16	12	10 lbs	20 lbs
Flx-Tube TR 5in	Flx-Tube TR 5in	5"	0.026"	6"	2:1	15	15	17.5 lbs	35 lbs
Flx-Tube TR 6in	Flx-Tube TR 6in	6"	0.035"	7"	2:1	14	18	20 lbs	40 lbs
Flx-Tube TR 7in	Flx-Tube TR 7in	7"	0.035"	8"	2:1	12	16	23.75 lbs	47.5 lbs
Flx-Tube TR 8in	Flx-Tube TR 8in	8"	0.035"	9.75"	2:1	8	15	28.25 lbs	56.5 lbs
Flx-Tube TR 10in	N/A	10"	0.040"	11"	2:1	6	10	37.5 lbs	75 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
