16-White-25 Flexaust White 16 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft
16-White-25 Flexaust White 16 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft
16-White-25 Flexaust White 16 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft
16-White-25 Flexaust White 16 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft

16-White-25 by Flexaust | #2201600025 | Air, Fume, Dust, and Material Handling Duct Hose | White | 16 inch | 25ft

Save $120.04 Save $120.04
$1,200.37
$1,200.37 - $1,200.37
$1,200.37
$1,080.33
$1,080.33 - $1,080.33
$1,080.33

Flexaust
White Air, Fume, Dust, and Material Handling Duct Hose

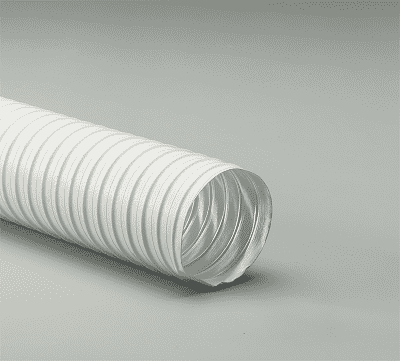

Double-ply white acrylic coated polyester fabric hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 16-White-25 Flexaust | 25 |
Brand: Flexaust
Series: White
Hose Color(s): White/Off-White
Internal Diameter: 16in
Tubing Construction: Acrylic Coated Polyester

SPECIFICATIONS

Applications: Food Grade, HEPA, Pharmaceutical SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply white acrylic coated polyester fabric
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -20 deg. F to 325 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Efficient flow characteristics.
  • Designed for applications with wide temperature ranges.
  • Good abrasion resistance.
  • Ideal for clean room applications.
  • Manufactured with FDA acceptable materials.
Part Number
25 ft Reels		 Inside
Diameter		 Wall Thickness
(In)		 Centerline
Bend Radius (In)		 Compression
Ratio		 Negative Pressure
(In/Hg)		 Working Pressure
(PSI)		 Weight - 25ft
(Lbs/Ft)
White 1.5in 1.5" N/A 1.32" 3:1 29 30 5 lbs
White 1.75in 1.75" N/A 1.5" 3:1 29 30 6.25 lbs
White 2in 2" N/A 1.7" 3:1 29 30 7.5 lbs
White 2.5in 2.5" N/A N/A N/A N/A N/A N/A
White 3in 3" N/A 2.5" 4:1 29 29 10 lbs
White 4in 4" N/A 3.2" 4:1 29 30 15 lbs
White 5in 5" N/A 4" 4:1 16 29 17.5 lbs
White 6in 6" N/A 4.5" 4:1 18 12 25 lbs
White 7in 7" N/A 5" 4:1 14 10 27.5 lbs
White 8in 8" N/A 5.6" 4:1 12 8 30 lbs
White 10in 10" N/A 7" 5:1 5 8 37.5 lbs
White 12in 12" N/A 8.3" 5:1 3.8 7 45 lbs
White 14in 14" N/A 10" 7:1 3 5.3 62.5 lbs
White 16in 16" N/A 11" 7:1 2 4.5 70 lbs
White 18in 18" N/A 13" 7:1 1.8 3 77.5 lbs
White 20in 20" N/A 14" 7:1 1.3 2.6 87.5 lbs
White 22in 22" N/A N/A N/A N/A N/A N/A
White 24in 24" N/A N/A N/A N/A N/A N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
