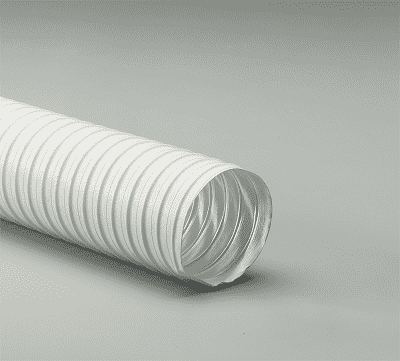

3-White-25 Flexaust White 3 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft

3-White-25 by Flexaust | #2200300025 | Air, Fume, Dust, and Material Handling Duct Hose | White | 3 inch | 25ft

Save $30.78

$307.78

$307.78 - $307.78

$307.78

$277.00

$277.00 - $277.00

$277.00

Flexaust
White Air, Fume, Dust, and Material Handling Duct Hose

Double-ply white acrylic coated polyester fabric hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: 3-White-25 Flexaust \| 25 \|
Brand:	Flexaust
Series:	White
Hose Color(s):	White/Off-White
Internal Diameter:	3in
Tubing Construction:	Acrylic Coated Polyester

SPECIFICATIONS

Other Features:
Applications:	Food Grade, HEPA, Pharmaceutical	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Double-ply white acrylic coated polyester fabric
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-20 deg. F to 325 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Efficient flow characteristics. Designed for applications with wide temperature ranges. Good abrasion resistance. Ideal for clean room applications. Manufactured with FDA acceptable materials.

Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)
White 1.5in	1.5"	N/A	1.32"	3:1	29	30	5 lbs
White 1.75in	1.75"	N/A	1.5"	3:1	29	30	6.25 lbs
White 2in	2"	N/A	1.7"	3:1	29	30	7.5 lbs
White 2.5in	2.5"	N/A	N/A	N/A	N/A	N/A	N/A
White 3in	3"	N/A	2.5"	4:1	29	29	10 lbs
White 4in	4"	N/A	3.2"	4:1	29	30	15 lbs
White 5in	5"	N/A	4"	4:1	16	29	17.5 lbs
White 6in	6"	N/A	4.5"	4:1	18	12	25 lbs
White 7in	7"	N/A	5"	4:1	14	10	27.5 lbs
White 8in	8"	N/A	5.6"	4:1	12	8	30 lbs
White 10in	10"	N/A	7"	5:1	5	8	37.5 lbs
White 12in	12"	N/A	8.3"	5:1	3.8	7	45 lbs
White 14in	14"	N/A	10"	7:1	3	5.3	62.5 lbs
White 16in	16"	N/A	11"	7:1	2	4.5	70 lbs
White 18in	18"	N/A	13"	7:1	1.8	3	77.5 lbs
White 20in	20"	N/A	14"	7:1	1.3	2.6	87.5 lbs
White 22in	22"	N/A	N/A	N/A	N/A	N/A	N/A
White 24in	24"	N/A	N/A	N/A	N/A	N/A	N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
