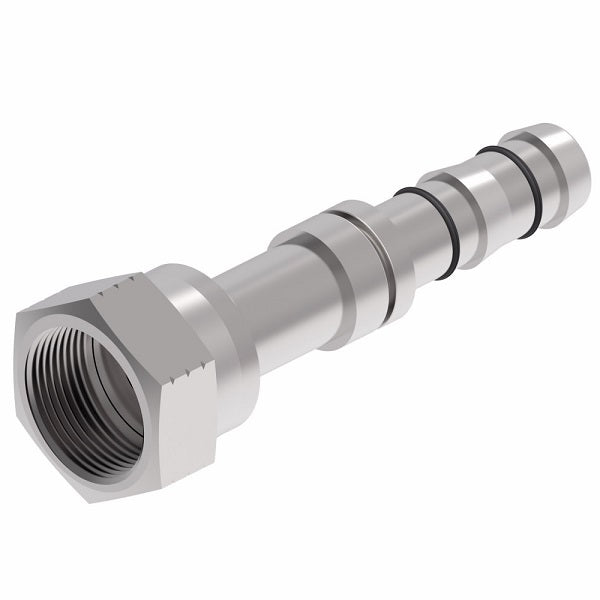

GA23911-10-10 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
GA23911-10-10 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
GA23911-10-10 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
GA23911-10-10 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

GA23911-10-10 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

$18.66 - $18.66
$18.66
$18.66 - $18.66
$18.66

Danfoss A/C & Refrigeration
E-Z Clip System - Female ORS Swivel Metric Hex Nut - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: GA23911-10-10 Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. Ref.

 Clip & Cage Kit
(Required)
GA23911-4-4 9/16-18 -04 1.86" 1.19" 17mm FF14175
GA23911-6-6 1-1/16-16 -06 2.95" 1.43" 22mm FF14171
GA23911-8-8 1-3/16-16 -08 3.17" 1.62" 24mm FF14172
GA23911-10-10 1-14 -10 3.33" 1.78" 30mm FF14173
GA23911-10-12 1-14 -12 3.32" 1.74" 30mm FF14174
GA23911-12-12 1-3/16-12 -12 3.32" 1.52" 41mm FF14174
GA23911-16-16 1-5/16-12 -16 3.30" 1.52" 41mm FF14401
