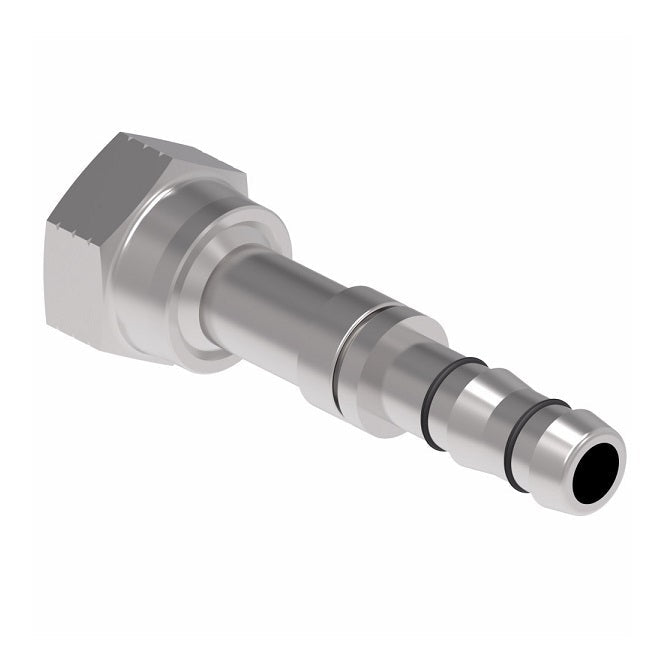

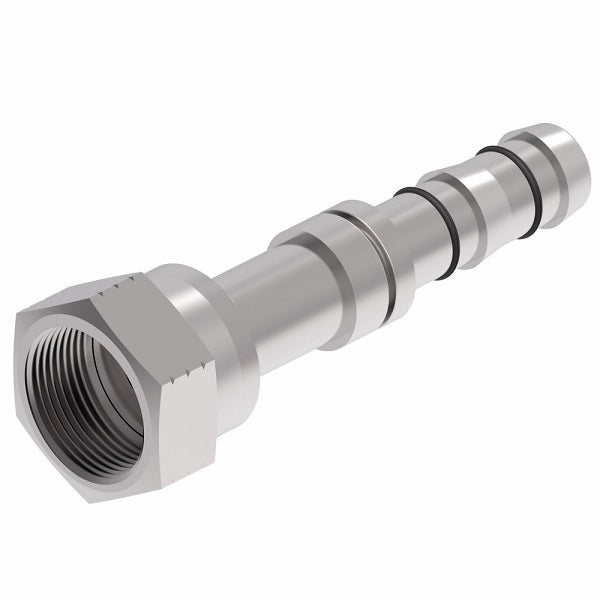

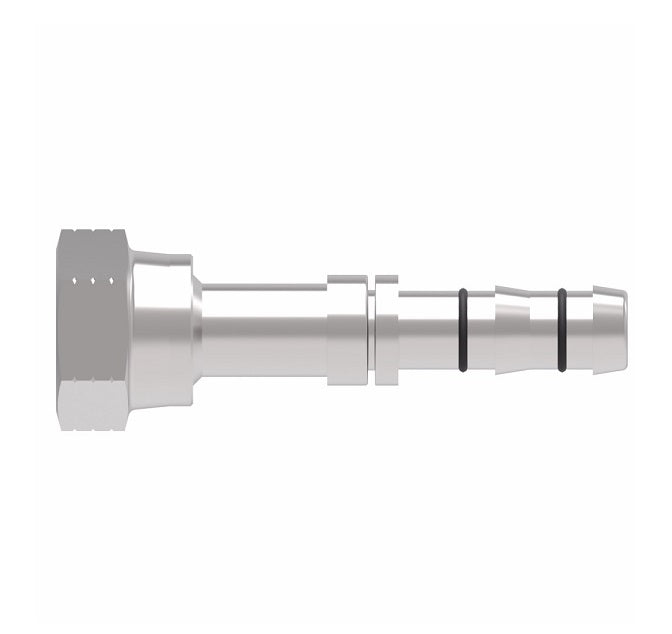

GA23911-10-12 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

GA23911-10-12 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

$18.79 - $18.79
$18.79
$18.79 - $18.79
$18.79

Danfoss A/C & Refrigeration
E-Z Clip System - Female ORS Swivel Metric Hex Nut - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GA23911-10-12 Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 5/8in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. Ref.

 Clip & Cage Kit
(Required)
GA23911-4-4 9/16-18 -04 1.86" 1.19" 17mm FF14175
GA23911-6-6 1-1/16-16 -06 2.95" 1.43" 22mm FF14171
GA23911-8-8 1-3/16-16 -08 3.17" 1.62" 24mm FF14172
GA23911-10-10 1-14 -10 3.33" 1.78" 30mm FF14173
GA23911-10-12 1-14 -12 3.32" 1.74" 30mm FF14174
GA23911-12-12 1-3/16-12 -12 3.32" 1.52" 41mm FF14174
GA23911-16-16 1-5/16-12 -16 3.30" 1.52" 41mm FF14401
