GC10-12x12 Couplamatic Grip Crimp Coupling - BSPP - British Standard Parallel 60° Cone - Female Swivel - 3/4" Hose ID - G-3/4-14 Thread Size - 3/4" BSPP

GC10-12x12 by Couplamatic | Grip Crimp Coupling | 3/4" Hose ID x G-3/4-14 Thread Size 60° Cone Female Swivel | 3/4" BSPP | Straight | Trivalent Zinc Plating

Save $12.92 Save $12.92
$32.30
$32.30 - $32.30
$32.30
$19.38
$19.38 - $19.38
$19.38

Couplamatic Systems Inc.
Grip Crimp Series - BSPP - British Standard Parallel 60° Cone - Female Swivel
Specifications for Variant SKU: GC10-12x12 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female BSPP, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • G. as part of thread size is ISO designation for parallel thread.
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

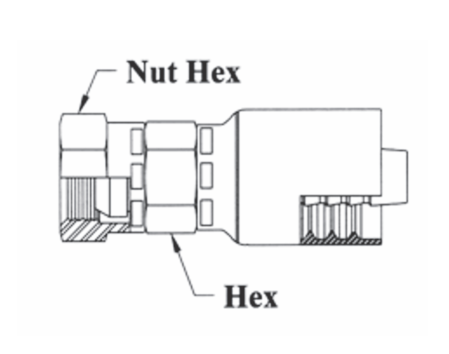

Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC10-4x4* 1/4" 1/4" G-1/4-19 9/16" 3/4" 4G-4FBSPORX 19243-4-4
GC10-4x6* 1/4" 3/8" G-3/8-19 3/4" 7/8" 4G-6FBSPORX -
GC10-6x6* 3/8" 3/8" G-3/8-19 3/4" 7/8" 6G-6FBSPORX 19243-6-6
GC10-6x8* 3/8" 1/2" G-1/2-14 3/4" 1" 6G-8FBSPORX 19243-8-6
GC10-8x8* 1/2" 1/2" G-1/2-14 7/8" 1" 8G-8FBSPORX 19243-8-8
GC10-10x10* 5/8" 5/8" G-5/8-14 15/16" 1-3/16" 10G-10FBSPORX 19243-10-10
GC10-12x12* 3/4" 3/4" G-3/4-14 1-1/8" 1-1/4" 12G-12FBSPORX 19243-12-12
GC10-16x16* 1" 1" G-1-11 1-3/8" 1-1/2" 16G-16FBSPORX 19243-16-16
GC10-20x20* 1-1/4" 1-1/4" G-1-1/4-11 1-11/16" 1-7/8" 20G-20FBSPORX 19243-20-20

*Does not have groove for optional O-ring

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
