GC10-16x16 Couplamatic Grip Crimp Coupling - BSPP - British Standard Parallel 60° Cone - Female Swivel - 1" Hose ID - G-1-11 Thread Size - 1" BSPP

GC10-16x16 by Couplamatic | Grip Crimp Coupling | 1" Hose ID x G-1-11 Thread Size Female Swivel | 1" BSPP | Straight | Trivalent Zinc Plating

Save $3.31

$29.77

$29.77 - $29.77

$29.77

$26.46

$26.46 - $26.46

$26.46

Couplamatic Systems Inc.
Grip Crimp Series - BSPP - British Standard Parallel 60° Cone - Female Swivel

Quantity

Specifications for Variant SKU: GC10-16x16 Couplamatic
Series:	Grip Crimp Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female BSPP, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
G. as part of thread size is ISO designation for parallel thread. Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

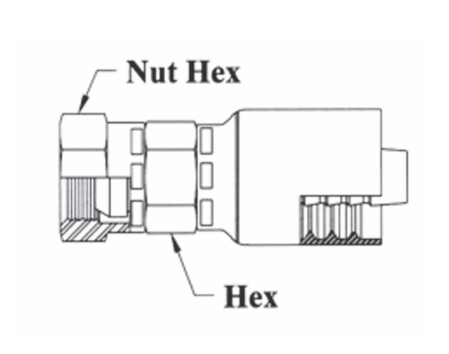

Part Number	Hose ID	BSPP Size	Thread Size	Hex Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	BSPP Size	Thread Size	Hex Size	Nut Hex	Gates Mega	Parker 43
GC10-4x4*	1/4"	1/4"	G-1/4-19	9/16"	3/4"	4G-4FBSPORX	19243-4-4
GC10-4x6*	1/4"	3/8"	G-3/8-19	3/4"	7/8"	4G-6FBSPORX	-
GC10-6x6*	3/8"	3/8"	G-3/8-19	3/4"	7/8"	6G-6FBSPORX	19243-6-6
GC10-6x8*	3/8"	1/2"	G-1/2-14	3/4"	1"	6G-8FBSPORX	19243-8-6
GC10-8x8*	1/2"	1/2"	G-1/2-14	7/8"	1"	8G-8FBSPORX	19243-8-8
GC10-10x10*	5/8"	5/8"	G-5/8-14	15/16"	1-3/16"	10G-10FBSPORX	19243-10-10
GC10-12x12*	3/4"	3/4"	G-3/4-14	1-1/8"	1-1/4"	12G-12FBSPORX	19243-12-12
GC10-16x16*	1"	1"	G-1-11	1-3/8"	1-1/2"	16G-16FBSPORX	19243-16-16
GC10-20x20*	1-1/4"	1-1/4"	G-1-1/4-11	1-11/16"	1-7/8"	20G-20FBSPORX	19243-20-20

*Does not have groove for optional O-ring

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
