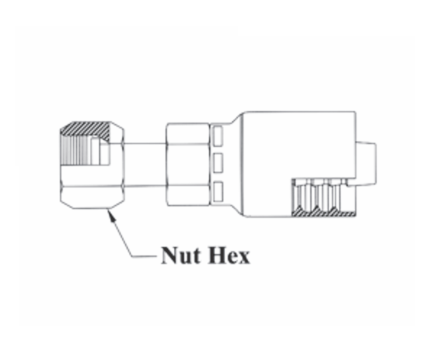

GC30-4x4 Couplamatic Grip Crimp Coupling - O-Ring Face Seal (ORF) - Female Swivel - 1/4" Hose ID - 9/16x18 Thread Size

GC30-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 9/16x18 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Pack of 5

Save $4.06

$36.52

$36.52 - $36.52

$36.52

$32.46

$32.46 - $32.46

$32.46

Couplamatic Systems Inc.
Grip Crimp Series - O-Ring Face Seal (ORF) - Female Swivel

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: GC30-4x4 Couplamatic \| 5 \|
Series:	Grip Crimp Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female O-Ring Face Seal, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Gates Mega	Parker 43
GC30-4x4	1/4"	9/16x18	1/4"	11/16"	4G-4FFORX	1JS43-4-4
GC30-4x6	1/4"	11/16x16	3/8"	13/16"	4G-6FFORX	1JS43-6-4
GC30-4x8	1/4"	13/16x16	1/2"	15/16"	-	1JS43-8-4
GC30-6x4	3/8"	9/16x18	1/4"	11/16"	-	1JS43-4-6
GC30-6x6	3/8"	11/16x16	3/8"	13/16"	6G-6FFORX	1JS43-6-6
GC30-6x8	3/8"	13/16x16	1/2"	15/16"	6G-8FFORX	1JS43-8-6
GC30-8x6	1/2"	11/16x16	3/8"	13/16"	8G-6FFORX	1JS43-6-8
GC30-8x8	1/2"	13/16x16	1/2"	15/16"	8G-8FFORX	1JS43-8-8
GC30-8x10	1/2"	1x14	5/8"	1-1/8"	8G-10FFORX	1JS43-10-8
GC30-8x12	1/2"	1-3/16x12	3/4"	1-3/8"	8G-12FFORX	1JS43-12-8
GC30-10x10	5/8"	1x14	5/8"	1-1/8"	10G-10FFORX	1JS43-10-10
GC30-10x12	5/8"	1-3/16x12	3/4"	1-3/8"	10G-12FFORX	1JS43-12-10
GC30-12x10	3/4"	1x14	5/8"	1-1/8"	12G-10FFORX	1JS43-10-12
GC30-12x12	3/4"	1-3/16x12	3/4"	1-3/8"	12G-12FFORX	1JS43-12-12
GC30-12x16	3/4"	1-7/16x12	1"	1-5/8"	12G-16FFORX	1JS43-16-12
GC30-16x16	1"	1-7/16x12	1"	1-5/8"	16G-16FFORX	1JS43-16-16
GC30-20x20	1-1/4"	1-11/16x12	1-1/4"	1-7/8"	16G-16FFORX	1JS43-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
