GC30-6x6 Couplamatic Grip Crimp Coupling - O-Ring Face Seal (ORF) - Female Swivel - 3/8" Hose ID - 11/16x16 Thread Size

GC30-6x6 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 11/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Pack of 5

Save $22.85

$57.13

$57.13 - $57.13

$57.13

$34.28

$34.28 - $34.28

$34.28

Couplamatic Systems Inc.
Grip Crimp Series - O-Ring Face Seal (ORF) - Female Swivel

Package Quantity: 5 EA

Specifications for Variant SKU: GC30-6x6 Couplamatic \| 5 \|
Series:	Grip Crimp Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Grip Crimp — Bite to the Wire

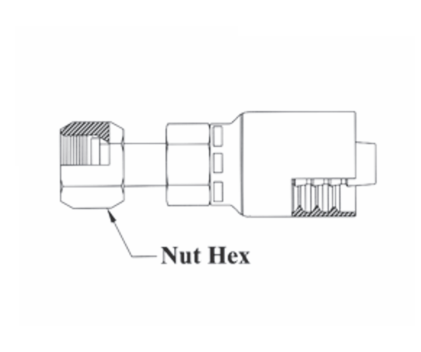

GC30 Grip Crimp Coupling — O-Ring Face Seal (ORF), Female Swivel, Straight

GC30 is the O-Ring Face Seal (ORF), Female Swivel, Straight configuration of the Grip Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, Ultra R16, 100R17, Dura-Hyd R17, 100R19, 100R3 and 100R4 hose.

1

What are the main product features?

Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
Trivalent Zinc Plating
Bite to the wire — the shell grips the hose reinforcement directly for a secure, permanent termination.
Widest hose compatibility in the line — terminates one and two wire braid, spiral and fiber braid hose across the SAE range.

2

Which sizes are available?

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Gates Mega	Parker 43
GC30-4x4	1/4"	9/16x18	1/4"	11/16"	4G-4FFORX	1JS43-4-4
GC30-4x6	1/4"	11/16x16	3/8"	13/16"	4G-6FFORX	1JS43-6-4
GC30-4x8	1/4"	13/16x16	1/2"	15/16"	—	1JS43-8-4
GC30-6x4	3/8"	9/16x18	1/4"	11/16"	—	1JS43-4-6
GC30-6x6	3/8"	11/16x16	3/8"	13/16"	6G-6FFORX	1JS43-6-6
GC30-6x8	3/8"	13/16x16	1/2"	15/16"	6G-8FFORX	1JS43-8-6
GC30-8x6	1/2"	11/16x16	3/8"	13/16"	8G-6FFORX	1JS43-6-8
GC30-8x8	1/2"	13/16x16	1/2"	15/16"	8G-8FFORX	1JS43-8-8
GC30-8x10	1/2"	1x14	5/8"	1-1/8"	8G-10FFORX	1JS43-10-8
GC30-8x12	1/2"	1-3/16x12	3/4"	1-3/8"	8G-12FFORX	1JS43-12-8
GC30-10x10	5/8"	1x14	5/8"	1-1/8"	10G-10FFORX	1JS43-10-10
GC30-10x12	5/8"	1-3/16x12	3/4"	1-3/8"	10G-12FFORX	1JS43-12-10
GC30-12x10	3/4"	1x14	5/8"	1-1/8"	12G-10FFORX	1JS43-10-12
GC30-12x12	3/4"	1-3/16x12	3/4"	1-3/8"	12G-12FFORX	1JS43-12-12
GC30-12x16	3/4"	1-7/16x12	1"	1-5/8"	12G-16FFORX	1JS43-16-12
GC30-16x16	1"	1-7/16x12	1"	1-5/8"	16G-16FFORX	1JS43-16-16
GC30-20x20	1-1/4"	1-11/16x12	1-1/4"	1-7/8"	16G-16FFORX	1JS43-20-20

i

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
