GC33-4x6 Couplamatic Grip Crimp Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop - 1/4" Hose ID - 11/16x16 Thread Size

GC33-4x6 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 11/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating

Save $7.17 Save $7.17
$17.92
$17.92 - $17.92
$17.92
$10.75
$10.75 - $10.75
$10.75

Couplamatic Systems Inc.
Grip Crimp Series - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop
Specifications for Variant SKU: GC33-4x6 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female O-Ring Face Seal, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Grip Crimp — Bite to the Wire

GC33 Grip Crimp Coupling — O-Ring Face Seal (ORF), Female Swivel, Long Drop 90° Elbow

GC33 is the O-Ring Face Seal (ORF), Female Swivel, Long Drop 90° Elbow configuration of the Grip Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, Ultra R16, 100R17, Dura-Hyd R17, 100R19, 100R3 and 100R4 hose.

1

What are the main product features?
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
  • Bite to the wire — the shell grips the hose reinforcement directly for a secure, permanent termination.
  • Widest hose compatibility in the line — terminates one and two wire braid, spiral and fiber braid hose across the SAE range.
2

Which sizes are available?

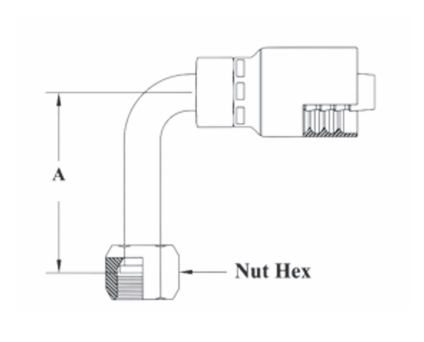

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC33-4x4 1/4" 9/16x18 1/4" 1.80" 11/16" 4G-4FFORX90L 1J143-4-4
GC33-4x6 1/4" 11/16x16 3/8" 2.13" 13/16" 4G-6FFORX90L 1J143-6-4
GC33-6x6 3/8" 11/16x16 3/8" 2.13" 13/16" 6G-6FFORX90L 1J143-6-6
GC33-6x8 3/8" 13/16x16 1/2" 2.51" 15/16" 6G-8FFORX90L 1J143-8-6
GC33-8x8 1/2" 13/16x16 1/2" 2.51" 15/16" 8G-8FFORX90L 1J143-8-8
GC33-8x10 1/2" 1x14 5/8" 2.76" 1-1/8" 8G-10FFORX90L 1J143-10-8
GC33-10x10 5/8" 1x14 5/8" 2.76" 1-1/8" 10G-10FFORX90L 1J143-10-10
GC33-12x12 3/4" 1-3/16x12 3/4" 3.78" 1-3/8" 12G-12FFORX90L 1J143-12-12
GC33-16x16 1" 1-7/16x12 1" 4.50" 1-5/8" 16G-16FFORX90L 1J143-16-16
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.

Shop Parts by Couplamatic Systems Inc
