GC33-6x8 Couplamatic Grip Crimp Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop - 3/8" Hose ID - 13/16x16 Thread Size

GC33-6x8 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 13/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating

Save $1.52 Save $1.52
$13.70
$13.70 - $13.70
$13.70
$12.18
$12.18 - $12.18
$12.18

Couplamatic Systems Inc.
Grip Crimp Series - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop
Specifications for Variant SKU: GC33-6x8 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

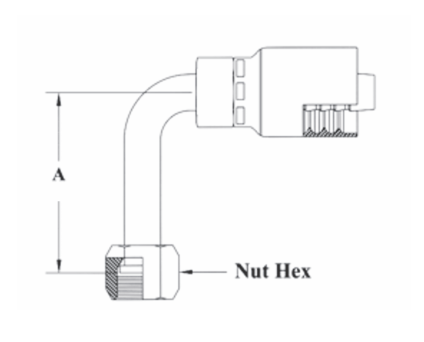

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC33-4x4 1/4" 9/16x18 1/4" 1.80" 11/16" 4G-4FFORX90L 1J143-4-4
GC33-4x6 1/4" 11/16x16 3/8" 2.13" 13/16" 4G-6FFORX90L 1J143-6-4
GC33-6x6 3/8" 11/16x16 3/8" 2.13" 13/16" 6G-6FFORX90L 1J143-6-6
GC33-6x8 3/8" 13/16x16 1/2" 2.51" 15/16" 6G-8FFORX90L 1J143-8-6
GC33-8x8 1/2" 13/16x16 1/2" 2.51" 15/16" 8G-8FFORX90L 1J143-8-8
GC33-8x10 1/2" 1x14 5/8" 2.76" 1-1/8" 8G-10FFORX90L 1J143-10-8
GC33-10x10 5/8" 1x14 5/8" 2.76" 1-1/8" 10G-10FFORX90L 1J143-10-10
GC33-12x12 3/4" 1-3/16x12 3/4" 3.78" 1-3/8" 12G-12FFORX90L 1J143-12-12
GC33-16x16 1" 1-7/16x12 1" 4.50" 1-5/8" 16G-16FFORX90L 1J143-16-16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
