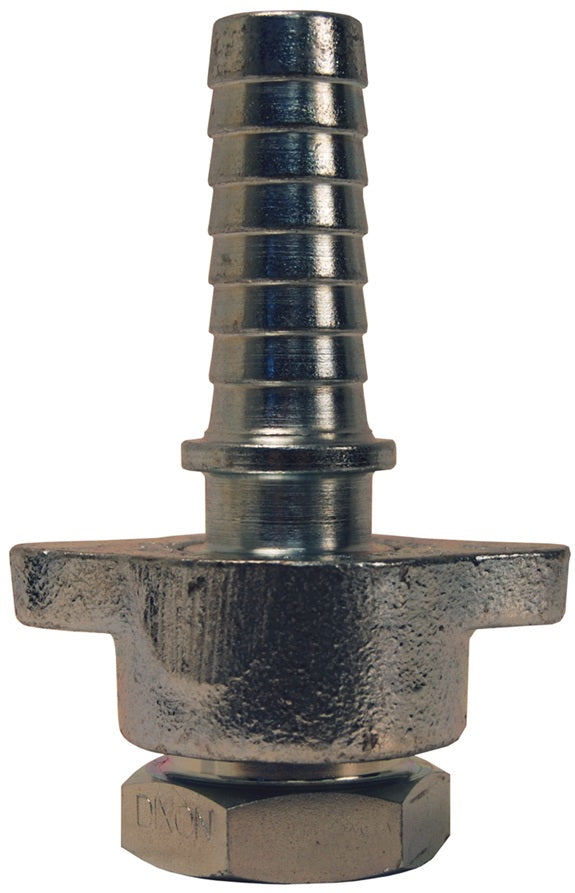

GDF12 by Dixon Valve | Boss® Ground Joint Air Hammer Coupling | Complete Female | with Female Spud | Heavy Duty | 1" Female NPT | Plated Iron/Steel

Save $4.53

$53.58

$53.58 - $53.58

$53.58

$49.05

$49.05 - $49.05

$49.05

Dixon Valve
Boss® | Ground Joint Air Hammer Coupling | Complete Female | with Female Spud

Quantity

Specifications for Variant SKU: GDF12 Dixon
Brand:	Boss
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Hose Barb
Material(s):	Plated Iron/Steel
Seal Material(s):	Copper

Features:
Rounded steel head of stem fits concave inserts in spuds for superior sealing. Use with Boss clamps.
Safety Notes:
Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
Construction:
Material: Plated Iron/Steel Seat: Metal-to-metal copper

Plated Steel / Iron Part Number	Style	Female NPT Size	Compatible with Air Hammer Parts:
GDF6	Compact	1/2"	GBA45, J47, GJ65, GJ60, GJ75
GDF8	Compact	3/4"	GBA46, J47 , GJ55, GJ50, GJ75
GDF10	Heavy Duty	3/4"	GBB18, DLB12, GDL8, GDL7, GDL25
GDF12	Heavy Duty	1"	GBB11, DLB12, GDL13, GDL10, GDL25
