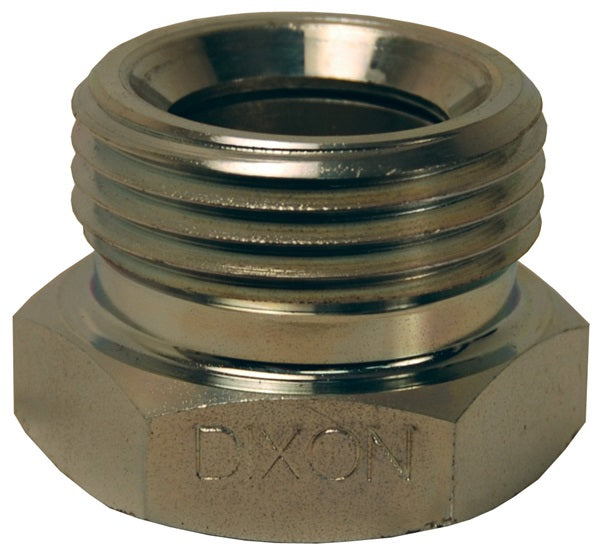

GJ55 by Dixon Valve | Boss® Ground Joint Air Hammer Coupling | Female Spud | Compact | 3/4" Female NPT | Plated Steel with Copper Seat

Save $1.73

$20.60

$20.60 - $20.60

$20.60

$18.87

$18.87 - $18.87

$18.87

Dixon Valve
Boss® | Ground Joint Air Hammer Coupling | Female Spud

Quantity

Specifications for Variant SKU: GJ55 Dixon
Brand:	Boss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 3/4in GJ Wing Nut Thread
Material(s):	Plated Steel
Seal Material(s):	Copper

Features:
Rounded steel head of stem fits concave inserts in spuds for superior sealing.
Safety Notes:
Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
Construction:
Material: Plated Steel Seat: Copper Thread: Coarse Nut

Plated Steel Part Number	Style	Hose I.D.	Coarse Nut Thread
GJ65	Compact	1/2"	1-31/64" O.D. x 8 TPI
GJ55	Compact	3/4"	1-31/64" O.D. x 8 TPI
GDL8	Heavy Duty	3/4"	1-47/64" O.D. x 8 TPI
GDL13	Heavy Duty	1"	1-47/64" O.D. x 8 TPI
