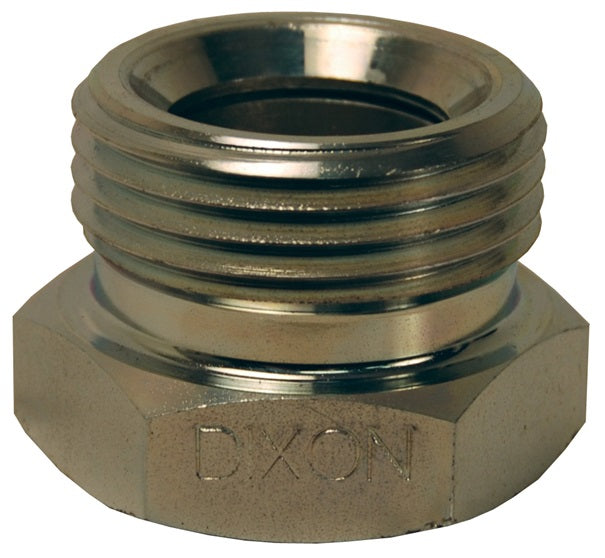

GDL8 by Dixon Valve | Boss® Ground Joint Air Hammer Coupling | Female Spud | Heavy Duty | 3/4" Female NPT | Plated Steel with Copper Seat

Save $2.49

$29.30

$29.30 - $29.30

$29.30

$26.81

$26.81 - $26.81

$26.81

Dixon Valve
Boss® | Ground Joint Air Hammer Coupling | Female Spud

Quantity

Specifications for Variant SKU: GDL8 Dixon
Brand:	Boss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 3/4in GJ Wing Nut Thread
Material(s):	Plated Steel
Seal Material(s):	Copper

Features:
Rounded steel head of stem fits concave inserts in spuds for superior sealing.
Safety Notes:
Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
Construction:
Material: Plated Steel Seat: Copper Thread: Coarse Nut

Plated Steel Part Number	Style	Hose I.D.	Coarse Nut Thread
GJ65	Compact	1/2"	1-31/64" O.D. x 8 TPI
GJ55	Compact	3/4"	1-31/64" O.D. x 8 TPI
GDL8	Heavy Duty	3/4"	1-47/64" O.D. x 8 TPI
GDL13	Heavy Duty	1"	1-47/64" O.D. x 8 TPI
