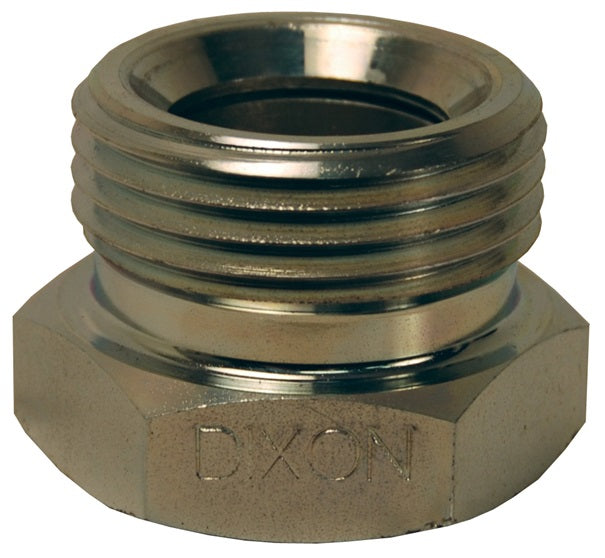

GDL13 by Dixon Valve | Boss® Ground Joint Air Hammer Coupling | Female Spud | Heavy Duty | 1" Female NPT | Plated Steel with Copper Seat

GDL13 by Dixon Valve | Boss® Ground Joint Air Hammer Coupling | Female Spud | Heavy Duty | 1" Female NPT | Plated Steel with Copper Seat

Save $2.09 Save $2.09
$24.84
$24.84 - $24.84
$24.84
$22.75
$22.75 - $22.75
$22.75

Dixon Valve
Boss® | Ground Joint Air Hammer Coupling | Female Spud
Specifications for Variant SKU: GDL13 Dixon
Brand: Boss
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in GJ Wing Nut Thread
Material(s): Plated Steel
Features:
  • Rounded steel head of stem fits concave inserts in spuds for superior sealing.
Safety Notes:
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
Construction:
  • Material: Plated Steel
  • Seat: Copper
  • Thread: Coarse Nut
Plated Steel
Part Number		 Style Hose I.D. Coarse Nut Thread
GJ65 Compact 1/2" 1-31/64" O.D. x 8 TPI
GJ55 Compact 3/4" 1-31/64" O.D. x 8 TPI
GDL8 Heavy Duty 3/4" 1-47/64" O.D. x 8 TPI
GDL13 Heavy Duty 1" 1-47/64" O.D. x 8 TPI
