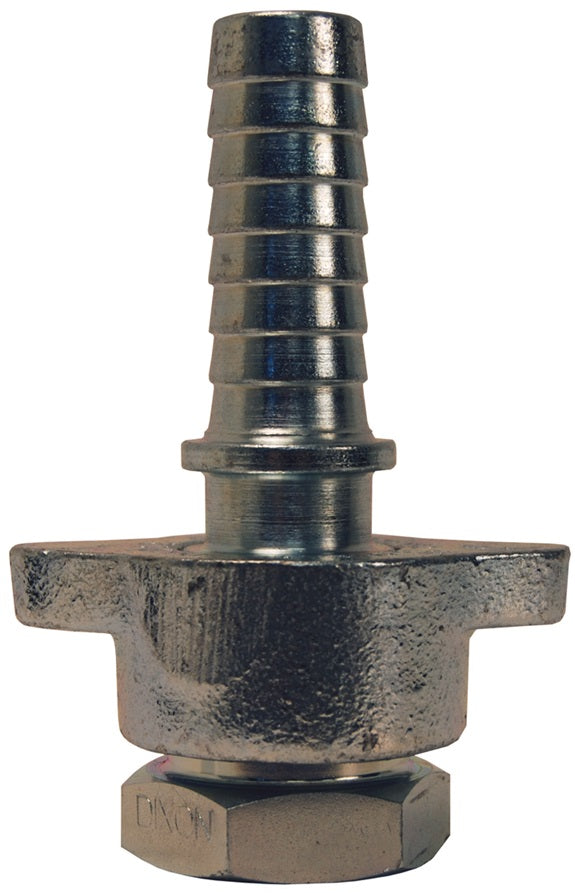

GDF6 by Dixon Valve | Boss® Ground Joint Air Hammer Coupling | Complete Female | with Female Spud | Compact | 1/2" Female NPT | Plated Iron/Steel

Save $4.20

$49.87

$49.87 - $49.87

$49.87

$45.67

$45.67 - $45.67

$45.67

Dixon Valve
Boss® | Ground Joint Air Hammer Coupling | Complete Female | with Female Spud

Quantity

Specifications for Variant SKU: GDF6 Dixon
Brand:	Boss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT, 1/2in Hose Barb
Material(s):	Plated Iron/Steel
Seal Material(s):	Copper

Features:
Rounded steel head of stem fits concave inserts in spuds for superior sealing. Use with Boss clamps.
Safety Notes:
Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
Construction:
Material: Plated Iron/Steel Seat: Metal-to-metal copper

Plated Steel / Iron Part Number	Style	Female NPT Size	Compatible with Air Hammer Parts:
GDF6	Compact	1/2"	GBA45, J47, GJ65, GJ60, GJ75
GDF8	Compact	3/4"	GBA46, J47 , GJ55, GJ50, GJ75
GDF10	Heavy Duty	3/4"	GBB18, DLB12, GDL8, GDL7, GDL25
GDF12	Heavy Duty	1"	GBB11, DLB12, GDL13, GDL10, GDL25

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
