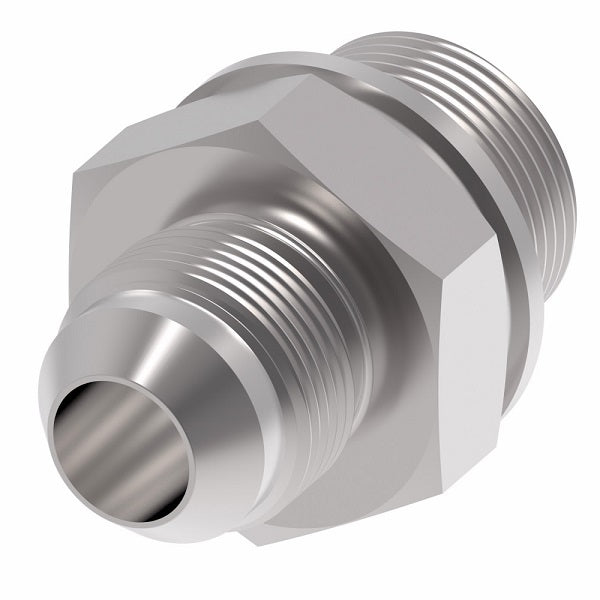

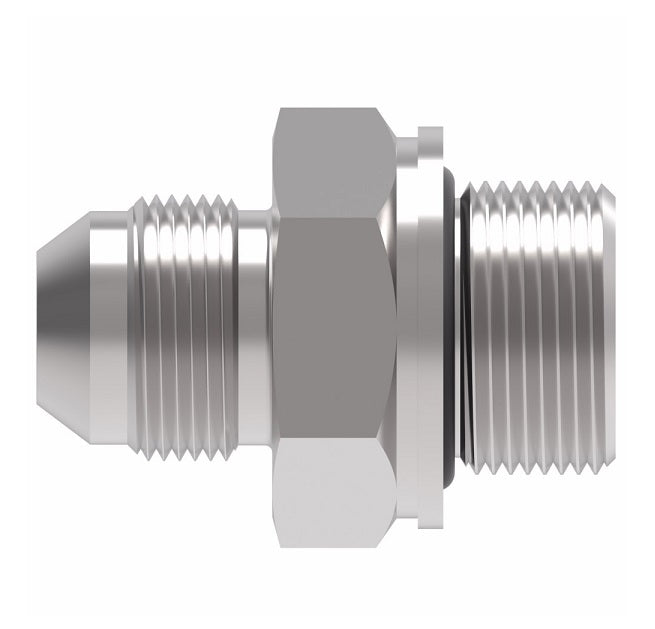

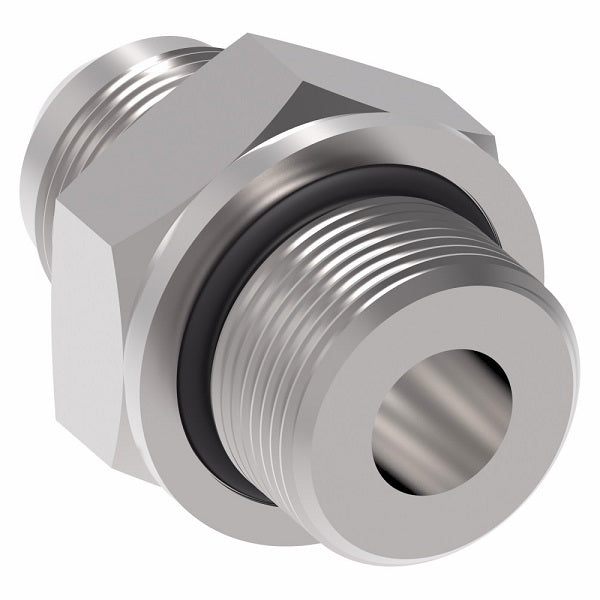

GG106-NP04-06 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -04 Male 37° JIC x -06 Male BSPP | Steel
GG106-NP04-06 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -04 Male 37° JIC x -06 Male BSPP | Steel
GG106-NP04-06 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -04 Male 37° JIC x -06 Male BSPP | Steel
GG106-NP04-06 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -04 Male 37° JIC x -06 Male BSPP | Steel

GG106-NP04-06 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -04 Male 37° JIC x -06 Male BSPP | Steel

$41.50 - $41.50
$41.50
$41.50 - $41.50
$41.50

Aeroquip® by Danfoss
Male 37° JIC/BSPP Male Adapter
Male 37° JIC x Male BSPP
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: GG106-NP04-06 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male JIC, 3/8in Male BSPP
Material(s): Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A
GG106-NP04-02 0.25" 7/16-20 G1/8-28 1.14"
GG106-NP04-04 0.25" 7/16-20 G1/4-19 1.36"
GG106-NP04-06 0.25" 7/16-20 G3/8-19 1.36"
GG106-NP04-08 0.25" 7/16-20 G1/2-14 1.50"
GG106-NP05-04 - - - -
GG106-NP06-04 0.38" 9/16-18 G1/4-19 1.36"
GG106-NP06-06 0.38" 9/16-18 G3/8-19 1.36"
GG106-NP06-08 0.38" 9/16-18 G1/2-14 1.50"
GG106-NP08-04 0.50" 3/4-16 G1/4-19 1.48"
GG106-NP08-06 0.50" 3/4-16 G3/8-19 1.48"
GG106-NP08-08 0.50" 3/4-16 G1/2-14 1.61"
GG106-NP08-12 0.50" 3/4-16 G3/4-14 1.77"
GG106-NP10-06 0.63" 7/8-14 G3/8-19 1.59"
GG106-NP10-08 0.63" 7/8-14 G1/2-14 1.71"
GG106-NP10-12 - - - -
GG106-NP12-08 0.75" 1-1/16-12 G1/2-14 1.85"
GG106-NP12-12 0.75" 1-1/16-12 G3/4-14 1.97"
GG106-NP12-16 0.75" 1-1/16-12 G1-11 2.07"
GG106-NP16-12 1.00" 1-1/16-12 G3/4-14 2.01"
GG106-NP16-16 1.00" 1-5/16-12 G1-11 2.11"
GG106-NP16-20 1.00" 1-5/16-12 G1-1/4-11 2.24"
GG106-NP20-20 1.25" 1-5/8-12 G1-1/4-11 2.30"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
