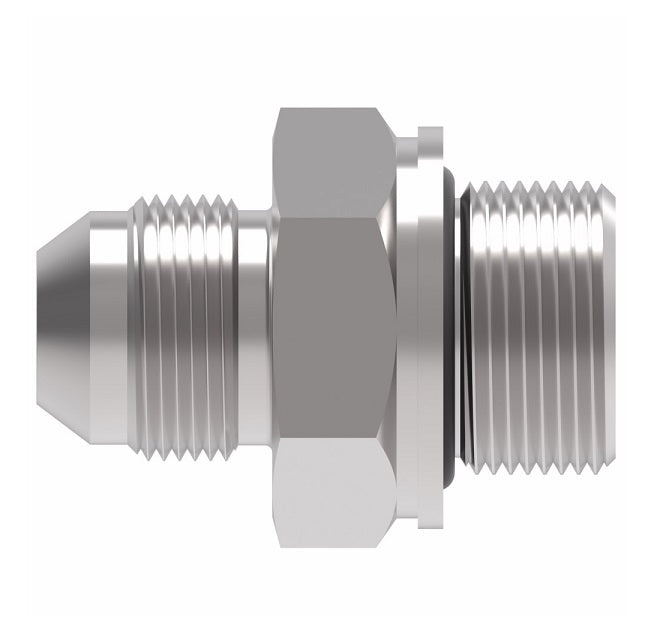

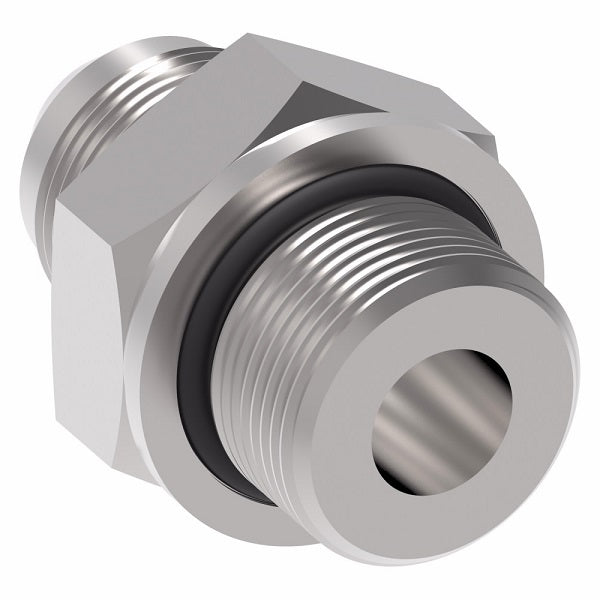

GG106-NP04-08 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -04 Male 37° JIC x -08 Male BSPP | Steel
GG106-NP04-08 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -04 Male 37° JIC x -08 Male BSPP | Steel
GG106-NP04-08 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -04 Male 37° JIC x -08 Male BSPP | Steel
GG106-NP04-08 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -04 Male 37° JIC x -08 Male BSPP | Steel

GG106-NP04-08 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -04 Male 37° JIC x -08 Male BSPP | Steel

$51.63 - $51.63
$51.63
$51.63 - $51.63
$51.63

Aeroquip® by Danfoss
Male 37° JIC/BSPP Male Adapter
Male 37° JIC x Male BSPP
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: GG106-NP04-08 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male JIC, 1/2in Male BSPP
Material(s): Steel
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A
GG106-NP04-02 0.25" 7/16-20 G1/8-28 1.14"
GG106-NP04-04 0.25" 7/16-20 G1/4-19 1.36"
GG106-NP04-06 0.25" 7/16-20 G3/8-19 1.36"
GG106-NP04-08 0.25" 7/16-20 G1/2-14 1.50"
GG106-NP05-04 - - - -
GG106-NP06-04 0.38" 9/16-18 G1/4-19 1.36"
GG106-NP06-06 0.38" 9/16-18 G3/8-19 1.36"
GG106-NP06-08 0.38" 9/16-18 G1/2-14 1.50"
GG106-NP08-04 0.50" 3/4-16 G1/4-19 1.48"
GG106-NP08-06 0.50" 3/4-16 G3/8-19 1.48"
GG106-NP08-08 0.50" 3/4-16 G1/2-14 1.61"
GG106-NP08-12 0.50" 3/4-16 G3/4-14 1.77"
GG106-NP10-06 0.63" 7/8-14 G3/8-19 1.59"
GG106-NP10-08 0.63" 7/8-14 G1/2-14 1.71"
GG106-NP10-12 - - - -
GG106-NP12-08 0.75" 1-1/16-12 G1/2-14 1.85"
GG106-NP12-12 0.75" 1-1/16-12 G3/4-14 1.97"
GG106-NP12-16 0.75" 1-1/16-12 G1-11 2.07"
GG106-NP16-12 1.00" 1-1/16-12 G3/4-14 2.01"
GG106-NP16-16 1.00" 1-5/16-12 G1-11 2.11"
GG106-NP16-20 1.00" 1-5/16-12 G1-1/4-11 2.24"
GG106-NP20-20 1.25" 1-5/8-12 G1-1/4-11 2.30"
