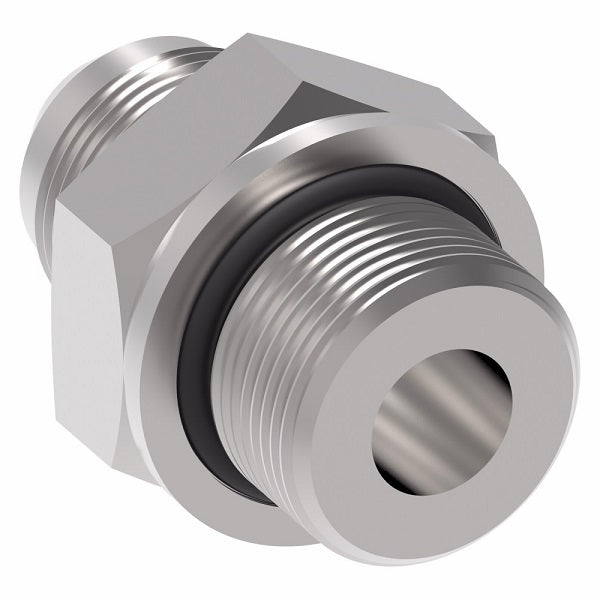

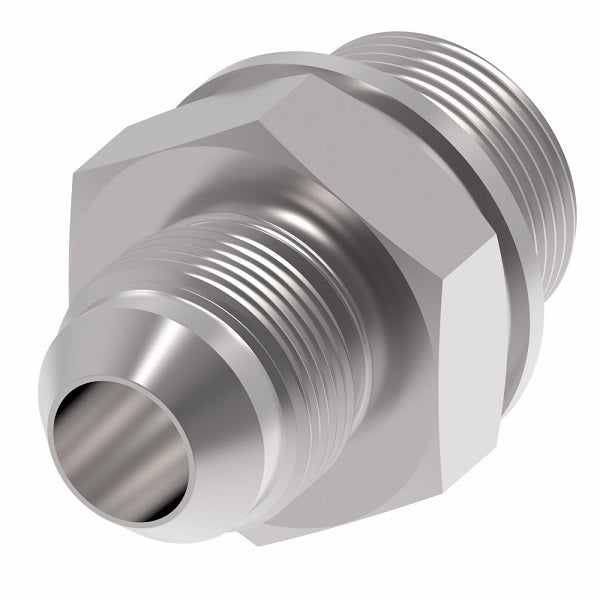

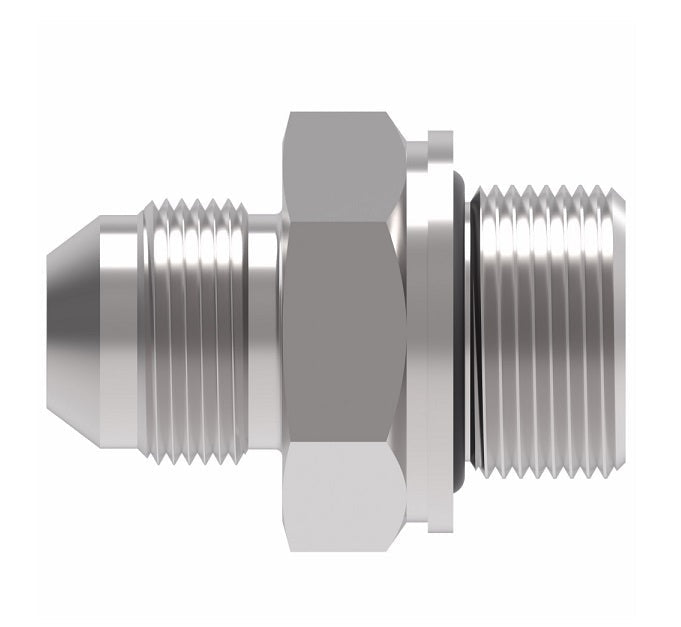

GG108-NP04-12 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -04 Male 37° JIC x M12 Male Metric | Steel

GG108-NP04-12 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -04 Male 37° JIC x M12 Male Metric | Steel

Name: GG108-NP04-12 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -04 Male 37° JIC x M12 Male Metric | Steel
Brand: Danfoss/Eaton
SKU: GG108-NP04-12 Danfoss
Price: 36.28 USD
Availability: InStock

$36.28 - $36.28

$36.28

$36.28 - $36.28

$36.28

Aeroquip® by Danfoss
Male 37° JIC/Male Metric Adapter
Male 37° JIC x Male Metric
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: GG108-NP04-12 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male JIC, 12mm Male Metric
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A
GG108-NP04-10	0.25"	7/16-20	M10 x 1.0	1.14"
GG108-NP04-12	0.25"	7/16-20	M12 x 1.5	1.30"
GG108-NP04-14	-	7/16-20	M14 x 1.5	1.34"
GG108-NP05-10	0.31"	1/2-20	M10 x 1.0	1.14"
GG108-NP06-14	0.38"	9/16-18	M14 x 1.5	1.34"
GG108-NP06-16	0.38"	9/16-18	M16 x 1.5	1.34"
GG108-NP08-16	0.50"	3/4-16	M16 x 1.5	1.46"
GG108-NP08-18	0.50"	3/4-16	M18 x 1.5	1.48"
GG108-NP08-22	-	3/4-16	M22 x 1.5	1.58"
GG108-NP10-18	0.63"	7/8-14	M18 x 1.5	1.58"
GG108-NP10-20	0.63"	7/8-14	M20 x 1.5	1.69"
GG108-NP10-22	0.63"	7/8-14	M22 x 1.5	1.69"
GG108-NP12-22	0.75"	1-1/16-12	M22 x 1.5	1.83"
GG108-NP12-27	0.75"	1-1/16-12	M27 x 2.0	1.95"
GG108-NP16-33	1.00"	1-5/16-12	M33 x 2.0	2.11"
GG108-NP20-42	-	-	-	-
