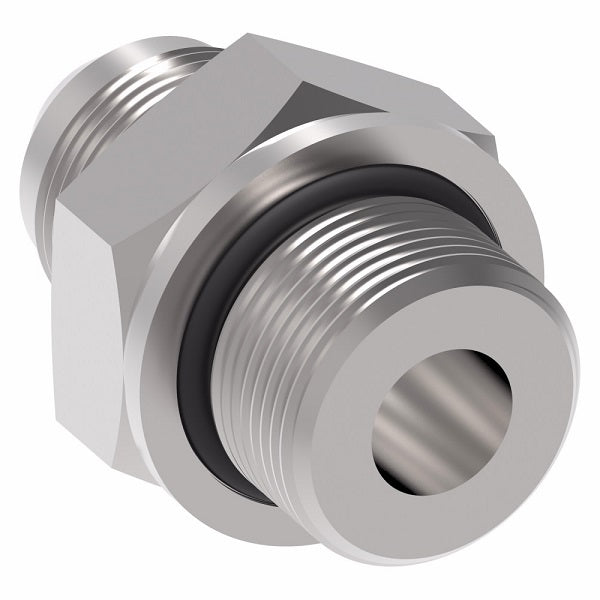

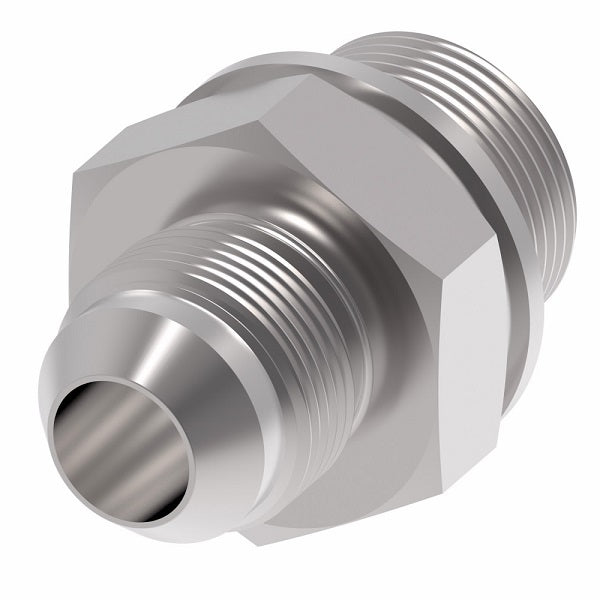

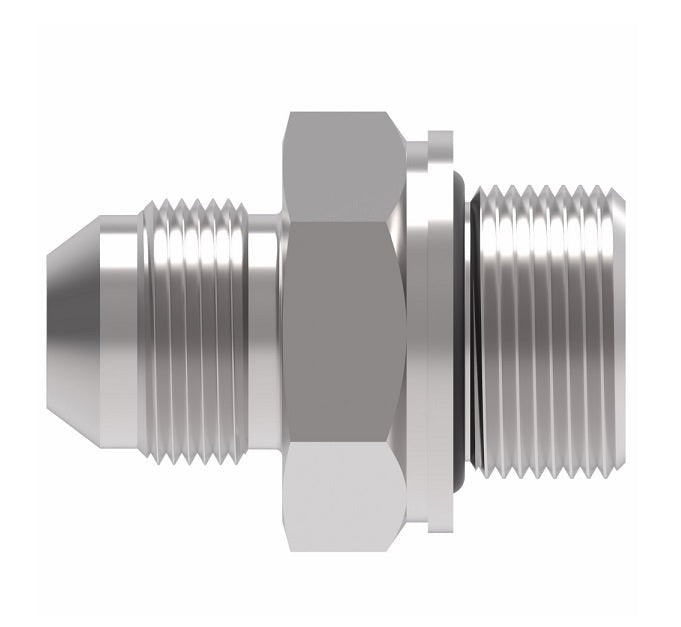

GG108-NP12-27 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -12 Male 37° JIC x M27 Male Metric | Steel

GG108-NP12-27 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -12 Male 37° JIC x M27 Male Metric | Steel

Name: GG108-NP12-27 Aeroquip by Danfoss | Male 37° JIC/Male Metric Adapter | -12 Male 37° JIC x M27 Male Metric | Steel
Brand: Danfoss/Eaton
SKU: GG108-NP12-27 Danfoss
Price: 33.44 USD
Availability: InStock

$33.44 - $33.44

$33.44

$33.44 - $33.44

$33.44

Aeroquip® by Danfoss
Male 37° JIC/Male Metric Adapter
Male 37° JIC x Male Metric
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: GG108-NP12-27 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male JIC, 27mm Male Metric
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A
GG108-NP04-10	0.25"	7/16-20	M10 x 1.0	1.14"
GG108-NP04-12	0.25"	7/16-20	M12 x 1.5	1.30"
GG108-NP04-14	-	7/16-20	M14 x 1.5	1.34"
GG108-NP05-10	0.31"	1/2-20	M10 x 1.0	1.14"
GG108-NP06-14	0.38"	9/16-18	M14 x 1.5	1.34"
GG108-NP06-16	0.38"	9/16-18	M16 x 1.5	1.34"
GG108-NP08-16	0.50"	3/4-16	M16 x 1.5	1.46"
GG108-NP08-18	0.50"	3/4-16	M18 x 1.5	1.48"
GG108-NP08-22	-	3/4-16	M22 x 1.5	1.58"
GG108-NP10-18	0.63"	7/8-14	M18 x 1.5	1.58"
GG108-NP10-20	0.63"	7/8-14	M20 x 1.5	1.69"
GG108-NP10-22	0.63"	7/8-14	M22 x 1.5	1.69"
GG108-NP12-22	0.75"	1-1/16-12	M22 x 1.5	1.83"
GG108-NP12-27	0.75"	1-1/16-12	M27 x 2.0	1.95"
GG108-NP16-33	1.00"	1-5/16-12	M33 x 2.0	2.11"
GG108-NP20-42	-	-	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
