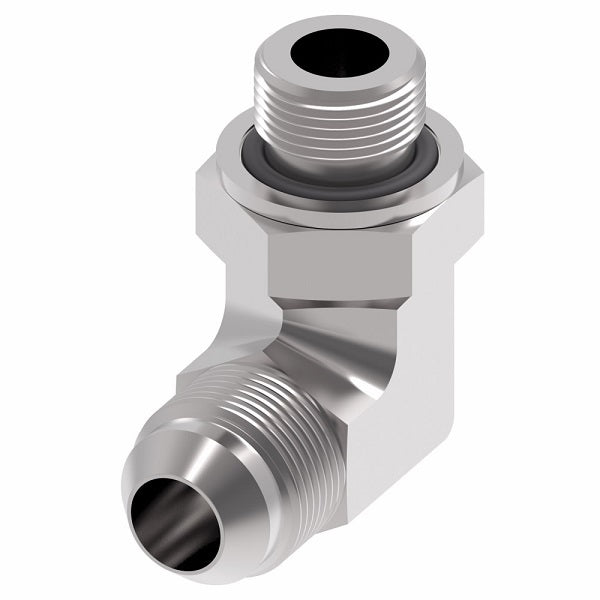

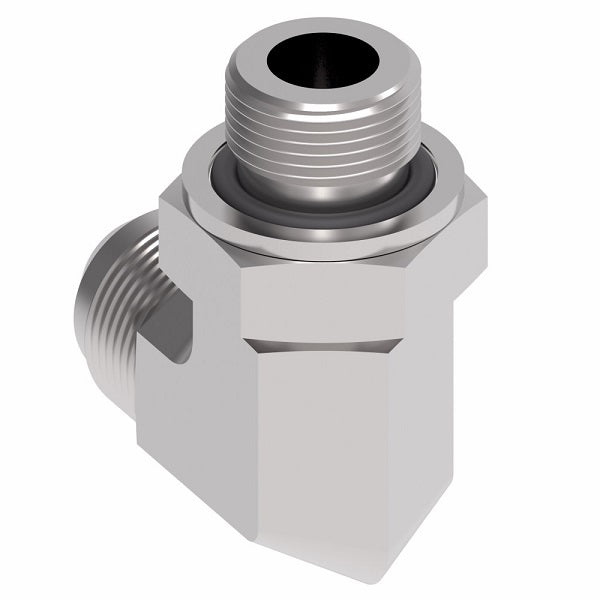

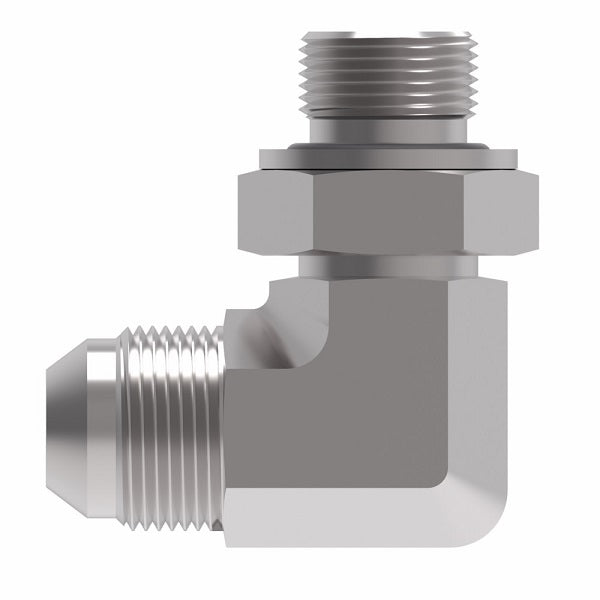

GG306-NP05-04 Aeroquip by Danfoss | Male 37° JIC/BSPP Male (Adj.) 90° Elbow Adapter | -05 Male 37° JIC x -04 Male BSPP | Steel

GG306-NP05-04 Aeroquip by Danfoss | Male 37° JIC/BSPP Male (Adj.) 90° Elbow Adapter | -05 Male 37° JIC x -04 Male BSPP | Steel

Name: GG306-NP05-04 Aeroquip by Danfoss | Male 37° JIC/BSPP Male (Adj.) 90° Elbow Adapter | -05 Male 37° JIC x -04 Male BSPP | Steel
Brand: Danfoss/Eaton
SKU: GG306-NP05-04 Danfoss
Price: 79.41 USD
Availability: InStock

$79.41 - $79.41

$79.41

$79.41 - $79.41

$79.41

Aeroquip® by Danfoss
Male 37° JIC/BSPP Male (Adj.) Adapter
Male 37° JIC x Male BSPP
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: GG306-NP05-04 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Male JIC, 1/4in Male BSPP
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A	B
GG306-NP04-02	0.25"	7/16-20	G1/8-28	0.89"	1.04"
GG306-NP04-04	0.25"	7/16-20	G1/4-19	1.06"	1.24"
GG306-NP05-04	0.31"	1/2-20	G1/4-19	1.06"	1.24"
GG306-NP06-04	0.38"	9/16-18	G1/4-19	1.06"	1.24"
GG306-NP06-06	0.38"	9/16-18	G3/8-19	1.12"	1.44"
GG306-NP08-06	0.50"	3/4-16	G3/8-19	1.24"	1.44"
GG306-NP08-08	0.50"	3/4-16	G1/2-14	1.34"	1.69"
GG306-NP10-08	0.63"	7/8-14	G1/2-14	1.44"	1.69"
GG306-NP10-12	-	-	-	-	-
GG306-NP12-12	0.75"	1-1/16-12	G3/4-14	1.65"	1.93"
GG306-NP16-16	1.00"	1-5/16-12	G1-11	1.81"	2.07"
GG306-NP20-20	1.25"	1-5/8-12	G1-1/4-11	2.05"	2.24"
