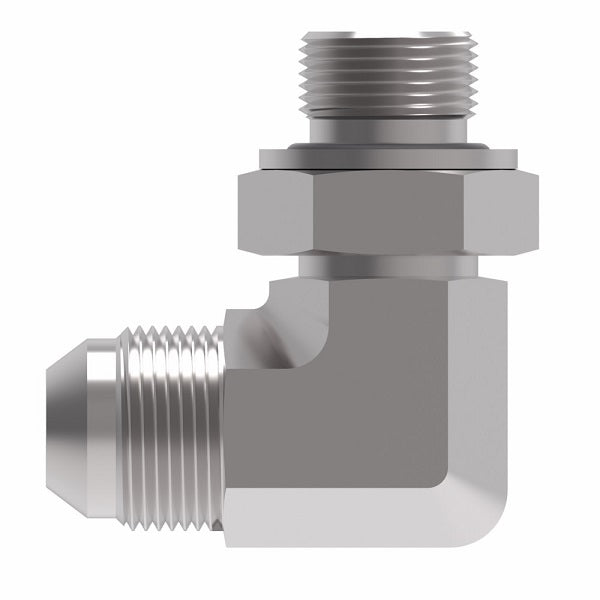

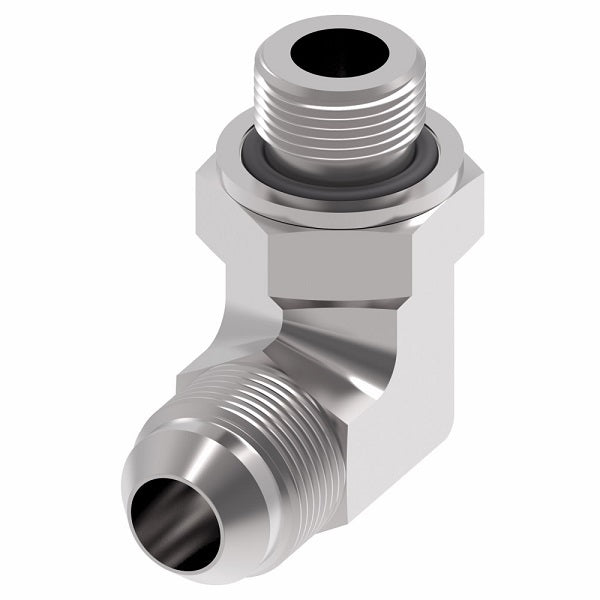

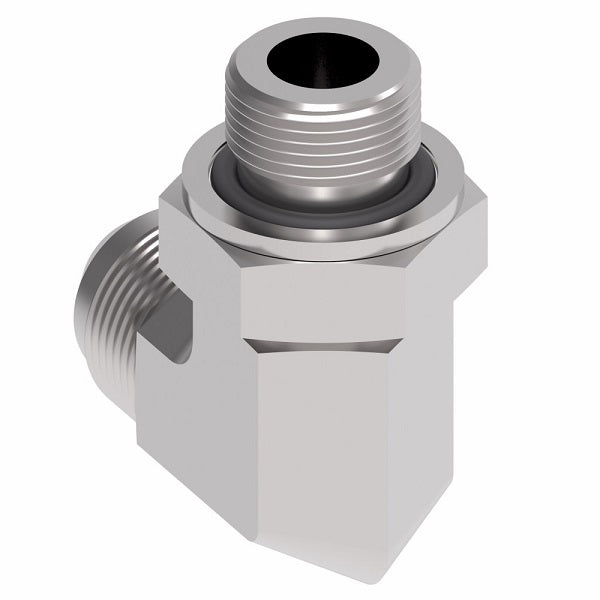

GG306-NP08-08 Aeroquip by Danfoss | Male 37° JIC/BSPP Male (Adj.) 90° Elbow Adapter | -08 Male 37° JIC x -08 Male BSPP | Steel

GG306-NP08-08 Aeroquip by Danfoss | Male 37° JIC/BSPP Male (Adj.) 90° Elbow Adapter | -08 Male 37° JIC x -08 Male BSPP | Steel

Name: GG306-NP08-08 Aeroquip by Danfoss | Male 37° JIC/BSPP Male (Adj.) 90° Elbow Adapter | -08 Male 37° JIC x -08 Male BSPP | Steel
Brand: Danfoss/Eaton
SKU: GG306-NP08-08 Danfoss
Price: 45.35 USD
Availability: InStock

$45.35 - $45.35

$45.35

$45.35 - $45.35

$45.35

Aeroquip® by Danfoss
Male 37° JIC/BSPP Male (Adj.) Adapter
Male 37° JIC x Male BSPP
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: GG306-NP08-08 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Male JIC, 1/2in Male BSPP
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A	B
GG306-NP04-02	0.25"	7/16-20	G1/8-28	0.89"	1.04"
GG306-NP04-04	0.25"	7/16-20	G1/4-19	1.06"	1.24"
GG306-NP05-04	0.31"	1/2-20	G1/4-19	1.06"	1.24"
GG306-NP06-04	0.38"	9/16-18	G1/4-19	1.06"	1.24"
GG306-NP06-06	0.38"	9/16-18	G3/8-19	1.12"	1.44"
GG306-NP08-06	0.50"	3/4-16	G3/8-19	1.24"	1.44"
GG306-NP08-08	0.50"	3/4-16	G1/2-14	1.34"	1.69"
GG306-NP10-08	0.63"	7/8-14	G1/2-14	1.44"	1.69"
GG306-NP10-12	-	-	-	-	-
GG306-NP12-12	0.75"	1-1/16-12	G3/4-14	1.65"	1.93"
GG306-NP16-16	1.00"	1-5/16-12	G1-11	1.81"	2.07"
GG306-NP20-20	1.25"	1-5/8-12	G1-1/4-11	2.05"	2.24"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
