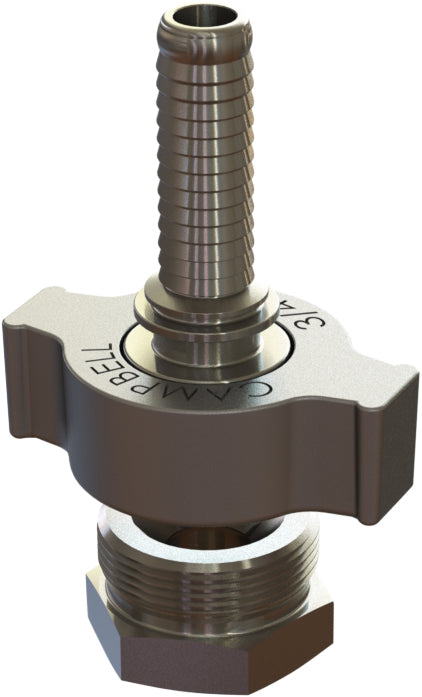

GJF-3 by Campbell Fittings | Ground Joint Coupling | Female Set | with wing nut | 3/4" Female NPT Thread x 3/4" Hose Shank | Viton® Seal | Ductile Iron/Steel

GJF-3 by Campbell Fittings | Ground Joint Coupling | Female Set | with wing nut | 3/4" Female NPT Thread x 3/4" Hose Shank | Viton® Seal | Ductile Iron/Steel

Save $13.33 Save $13.33
$49.63
$49.63 - $49.63
$49.63
$36.30
$36.30 - $36.30
$36.30

by Campbell
VITON® Seal Ground Joint Couplings:Steel/Ductile Iron Female Set (with wing nut)
Specifications for Variant SKU: GJF-3 Campbell Fittings
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Hose Barb
Material(s): Ductile Iron, Steel
Seal Material(s): Viton
Recommended Use:
  • High-pressure steam and air
Recommended Hose Attachments:
  • Interlocking Ferrules
  • Interlocking U-bolt clamps
Features and Benefits:
  • Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
Part Number Hose Size
GJF-2 1/2"
GJF-3 3/4"
GJF-4 1"
GJF-5 1-1/4"
GJF-6 1-1/2"
GJF-8 2"
GJF-10 2-1/2"
GJF-12 3"
GJF-16 4"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
