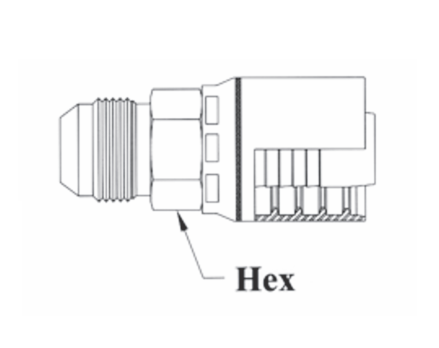

GW08-12x14 Couplamatic GW Series Coupling - JIC 37° - Male Solid - 3/4" Hose ID - 1-3/16x12 Thread

GW08-12x14 by Couplamatic | GW Series Coupling | 3/4" Hose ID x 1-3/16x12 Thread JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Save $2.41 Save $2.41
$21.66
$21.66 - $21.66
$21.66
$19.25
$19.25 - $19.25
$19.25

Couplamatic Systems Inc.
GW Series - JIC 37° - Male Solid
Specifications for Variant SKU: GW08-12x14 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 7/8in Male JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
Part Number Hose ID Tube OD Thread Size Hex Size Cross Reference Part Numbers
Weatherhead 430U
GW08-8x8 1/2" 1/2" 3/4x16 7/8" 43008U-508
GW08-8x10 1/2" 5/8" 7/8x14 7/8" 43008U-510
GW08-12x12 3/4" 3/4" 1-1/16x12 1-1/8" 43012U-512
GW08-12x14 3/4" 7/8" 1-3/16x12 1-3/8" 43012U-514
GW08-12x16 3/4" 1" 1-5/16x12 1-3/8" 43012U-516
GW08-16x16 1" 1" 1-5/16x12 1-3/8" 43016U-516
GW08-20x20 1-1/4" 1-1/4" 1-5/8x12 1-11/16" 43020U-520

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
