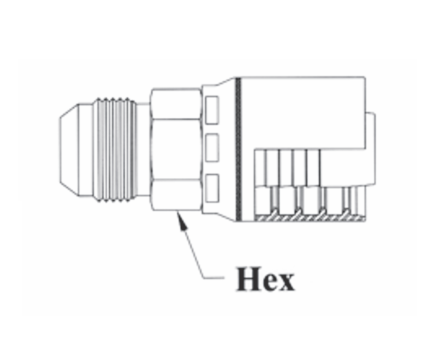

GW08-16x16 Couplamatic GW Series Coupling - JIC 37° - Male Solid - 1" Hose ID - 1-5/16x12 Thread

GW08-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1-5/16x12 Thread JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Save $2.32 Save $2.32
$23.16
$23.16 - $23.16
$23.16
$20.84
$20.84 - $20.84
$20.84

Couplamatic Systems Inc.
GW Series - JIC 37° - Male Solid
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GW08-16x16 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 1in Male JIC, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
Part Number Hose ID Tube OD Thread Size Hex Size Cross Reference Part Numbers
Weatherhead 430U
GW08-8x8 1/2" 1/2" 3/4x16 7/8" 43008U-508
GW08-8x10 1/2" 5/8" 7/8x14 7/8" 43008U-510
GW08-12x12 3/4" 3/4" 1-1/16x12 1-1/8" 43012U-512
GW08-12x14 3/4" 7/8" 1-3/16x12 1-3/8" 43012U-514
GW08-12x16 3/4" 1" 1-5/16x12 1-3/8" 43012U-516
GW08-16x16 1" 1" 1-5/16x12 1-3/8" 43016U-516
GW08-20x20 1-1/4" 1-1/4" 1-5/8x12 1-11/16" 43020U-520

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
