GW10-12x12 Couplamatic GW Series Coupling - BSPP - British Standard Parallel 60° Cone - Female Swivel - 3/4" Hose ID - G-3/4-14 Thread - 3/4" BSPP

GW10-12x12 by Couplamatic | GW Series Coupling | 3/4" Hose ID x G-3/4-14 Thread 60° Cone Female Swivel | 3/4" BSPP | Straight | Trivalent Zinc Plating

Save $1.83 Save $1.83
$16.46
$16.46 - $16.46
$16.46
$14.63
$14.63 - $14.63
$14.63

Couplamatic Systems Inc.
GW Series - BSPP - British Standard Parallel 60° Cone - Female Swivel
Specifications for Variant SKU: GW10-12x12 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female BSPP, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

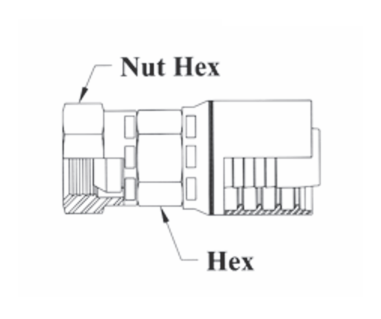

Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead 430U
GW10-8x8 1/2" 1/2" G-1/2-14 7/8" 1" 43008U-358
GW10-12x12 3/4" 3/4" G-3/4-14 1-1/8" 1-1/4" 43012U-362
GW10-16x16 1" 1" G-1-11 1-3/8" 1-1/2" 43016U-366

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
