GW10-16x16 Couplamatic GW Series Coupling - BSPP - British Standard Parallel 60° Cone - Female Swivel - 1" Hose ID - G-1-11 Thread - 1" BSPP

GW10-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x G-1-11 Thread 60° Cone Female Swivel | 1" BSPP | Straight | Trivalent Zinc Plating

Save $3.28

$29.52

$29.52 - $29.52

$29.52

$26.24

$26.24 - $26.24

$26.24

Couplamatic Systems Inc.
GW Series - BSPP - British Standard Parallel 60° Cone - Female Swivel

Quantity

Specifications for Variant SKU: GW10-16x16 Couplamatic
Series:	GW Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female BSPP, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series \| 2SN Series

Description:
NO SKIVE REQUIRED. The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

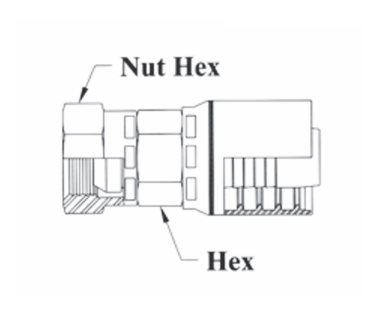

Part Number	Hose ID	BSPP Size	Thread Size	Hex Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	BSPP Size	Thread Size	Hex Size	Nut Hex	Weatherhead 430U
GW10-8x8	1/2"	1/2"	G-1/2-14	7/8"	1"	43008U-358
GW10-12x12	3/4"	3/4"	G-3/4-14	1-1/8"	1-1/4"	43012U-362
GW10-16x16	1"	1"	G-1-11	1-3/8"	1-1/2"	43016U-366

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
