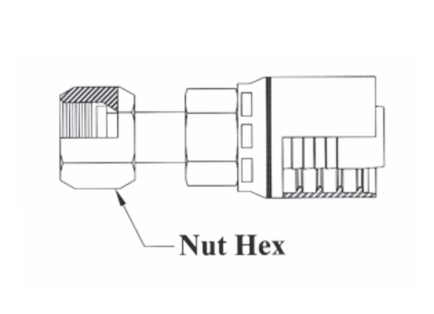

GW30-12x16 Couplamatic GW Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 3/4" Hose ID - 1-7/16x12 Thread

GW30-12x16 by Couplamatic | GW Series Coupling | 3/4" Hose ID x 1-7/16x12 Thread O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating

Save $21.10 Save $21.10
$52.75
$52.75 - $52.75
$52.75
$31.65
$31.65 - $31.65
$31.65

Couplamatic Systems Inc.
GW Series - O-Ring Face Seal (ORF) - Female Swivel
Specifications for Variant SKU: GW30-12x16 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 1in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
Part Number Hose ID Tube Size Thread Size Nut Hex Cross Reference Part Numbers
Weatherhead 430U
GW30-8x8 1/2" 1/2" 13/16x16 15/16" 43008U-S68
GW30-8x10 1/2" 5/8" 1x14 1-1/8" 43008U-S70
GW30-8x12 1/2" 3/4" 1-3/16x12 1-3/8" -
GW30-12x10 3/4" 5/8" 1x14 1-1/8" 43012U-S70
GW30-12x12 3/4" 3/4" 1-3/16x12 1-3/8" 43012U-S72
GW30-12x16 3/4" 1" 1-7/16x12 1-5/8" 43012U-S76
GW30-16x16 1" 1" 1-7/16x12 1-5/8" 43016U-S76
GW30-20x20 1-1/4" 1-1/4" 1-11/16x12 1-7/8" 43020U-S80
GW30-24x24 1-1/2" 1-1/2" 2x12 2-1/4" -

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
