GW30-8x8 Couplamatic GW Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 1/2" Hose ID - 13/16x16 Thread

GW30-8x8 by Couplamatic | GW Series Coupling | 1/2" Hose ID x 13/16x16 Thread O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating

Save $1.53

$13.78

$13.78 - $13.78

$13.78

$12.25

$12.25 - $12.25

$12.25

Couplamatic Systems Inc.
GW Series - O-Ring Face Seal (ORF) - Female Swivel

Quantity

Specifications for Variant SKU: GW30-8x8 Couplamatic
Series:	GW Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series \| 2SN Series

Description:
NO SKIVE REQUIRED. The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

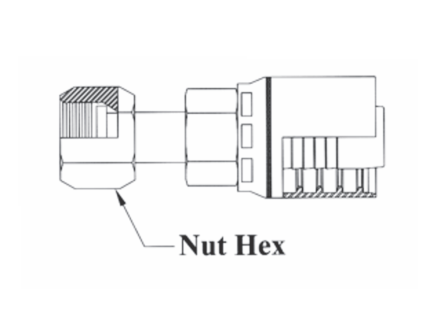

Part Number	Hose ID	Tube Size	Thread Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Tube Size	Thread Size	Nut Hex	Weatherhead 430U
GW30-8x8	1/2"	1/2"	13/16x16	15/16"	43008U-S68
GW30-8x10	1/2"	5/8"	1x14	1-1/8"	43008U-S70
GW30-8x12	1/2"	3/4"	1-3/16x12	1-3/8"	-
GW30-12x10	3/4"	5/8"	1x14	1-1/8"	43012U-S70
GW30-12x12	3/4"	3/4"	1-3/16x12	1-3/8"	43012U-S72
GW30-12x16	3/4"	1"	1-7/16x12	1-5/8"	43012U-S76
GW30-16x16	1"	1"	1-7/16x12	1-5/8"	43016U-S76
GW30-20x20	1-1/4"	1-1/4"	1-11/16x12	1-7/8"	43020U-S80
GW30-24x24	1-1/2"	1-1/2"	2x12	2-1/4"	-

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
