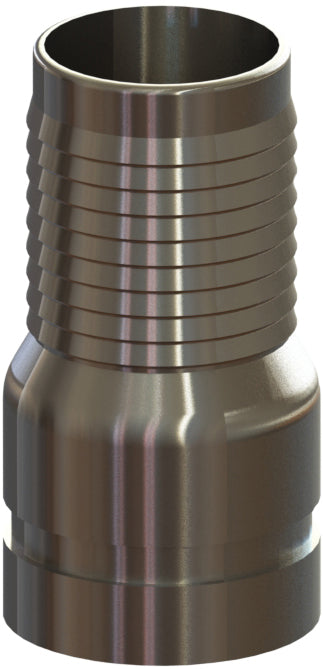

HAGS-12 by Campbell Fittings | Grooved Combination Nipple | 3" Female NPT Thread x 3" Hose Barb | Carbon Steel

HAGS-12 by Campbell Fittings | Grooved Combination Nipple | 3" Female NPT Thread x 3" Hose Barb | Carbon Steel

Save $15.20 Save $15.20
$38.46
$38.46 - $38.46
$38.46
$23.26
$23.26 - $23.26
$23.26

by Campbell
Combination Nipples & Menders:HAGS Grooved Combination Nipple
Specifications for Variant SKU: HAGS-12 Campbell Fittings
Series: HAGS Series
Shape (Orientation): Straight
Ends Configuration: 3in Female NPT, 3in Hose Barb
Material(s): Carbon Steel
Recommended Use:
  • Liquid, bulk handling, low pressure air
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation
Part Number Hose Size
HAGS-3 3/4"
HAGS-4 1"
HAGS-5 1-1/4"
HAGS-6 1-1/2"
HAGS-8 2"
HAGS-10 2-1/2"
HAGS-12 3"
HAGS-16 4"
HAGS-20 5"
HAGS-24 6"
HAGS-32 8"
HAGS-40 10"
HAGS-48 12"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
