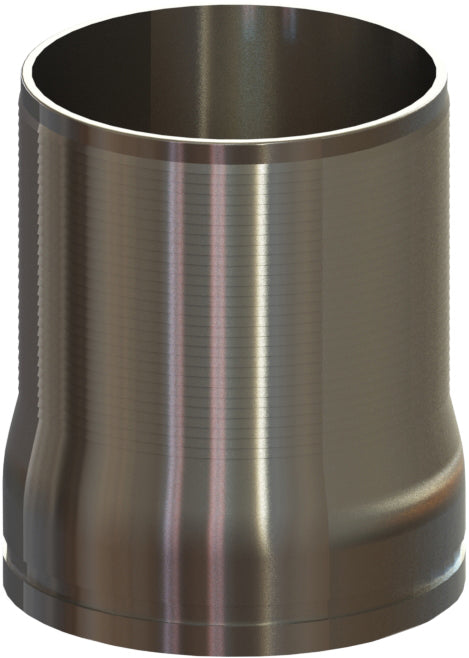

HAGS-32 by Campbell Fittings | Grooved Combination Nipple | 8" Female NPT Thread x 8" Hose Barb | Carbon Steel

Name: HAGS-32 by Campbell Fittings | Grooved Combination Nipple | 8" Female NPT Thread x 8" Hose Barb | Carbon Steel
Brand: Campbell Fittings
SKU: HAGS-32 Campbell Fittings
Price: 146.29 USD
Availability: InStock

$129.69 - $129.69

$129.69

$146.29

$146.29 - $146.29

$146.29

by Campbell
Combination Nipples & Menders:HAGS Grooved Combination Nipple

Quantity

Specifications for Variant SKU: HAGS-32 Campbell Fittings
Series:	HAGS Series
Shape (Orientation):	Straight
Ends Configuration:	8in Female NPT, 8in Hose Barb
Material(s):	Carbon Steel

Recommended Use:	Liquid, bulk handling, low pressure air
Recommended Hose Attachments:	Sleeves Preformed Bands Clamps
Features and Benefits:	Maximum number of serrations for maximum holding power Long lead serration for easier hose insertion Formed hex wrench area on 3/4" through 1-1/2" combination nipples for easier installation


Part Number	Hose Size
HAGS-3	3/4"
HAGS-4	1"
HAGS-5	1-1/4"
HAGS-6	1-1/2"
HAGS-8	2"
HAGS-10	2-1/2"
HAGS-12	3"
HAGS-16	4"
HAGS-20	5"
HAGS-24	6"
HAGS-32	8"
HAGS-40	10"
HAGS-48	12"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
