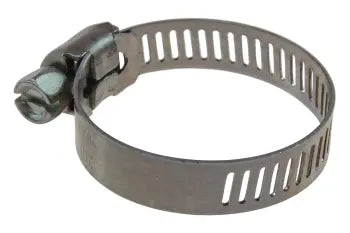

HC228 by Coilhose | Worm Drive Reusable Hose Clamp | 1-5/16" - 2-1/4" Size Range | 9/16" Band Width | Plated Steel | Pack of 10

HC228 by Coilhose | Worm Drive Reusable Hose Clamp | 1-5/16" - 2-1/4" Size Range | 9/16" Band Width | Plated Steel | Pack of 10

Save $21.27 Save $21.27
$53.17
$53.17 - $53.17
$53.17
$31.90
$31.90 - $31.90
$31.90
Coilhose Pneumatics - Worm Drive Clamps

Package Quantity: 10 Pack

Specifications for Variant SKU: HC228 Coilhose | 10 |
Material(s): Plated Steel
Minimum Clamp I.D.: 1.312
Maximum Clamp I.D.: 2.250
Overview:
  • Worm-Drive Reusable Hose Clamps facilitate quick, permanent in-field installation and repairs for a wide variety of applications. Makes custom hose assemblies possible using only a screwdriver. Also ideal for special situations requiring extra reinforcement. Band and housing are made of heavyduty stainless steel and the screw is available in cadmium-plated steel (Model HC) or stainless steel (Model HS). Available in a wide variety of sizes.
  • Can be removed and reused.
Features:
  • Tighten with hex or slotted screwdriver.
  • Stainless Steel offers enhanced corrosion resistance.
  • Made in USA

Part No.
Plated Steel		 Part No.
Stainless Steel		 Size Range Band Width
Min. Max.
HC104 HS104 7/32" 5/8" 5/16"
HC106 HS106 5/16" 7/8" 5/16"
HC112 HS112 9/16" 1-1/4" 5/16"
HC116 HS116 11/16" 1-1/2 5/16"
HC120 HS120 3/4" 1-3/4" 5/16"
HC206 HS206 3/8" 7/8" 9/16"
HC208 HS208 7/16" 1" 9/16"
HC210 HS210 9/16" 1-1/16" 9/16"
HC212 HS212 9/16" 1-1/4" 9/16"
HC216 HS216 11/16" 1-1/2" 9/16"
HC220 HS220 3/4" 1-3/4" 9/16"
HC224 HS224 1-1/16" 2" 9/16"
HC228 HS228 1-5/16" 2-1/4" 9/16"
HC232 HS232 1-9/16" 2-1/2" 9/16"
HC236 HS236 1-13/16" 2-3/4" 9/16"
HC240 HS240 2-1/16" 3" 9/16"
HC244 HS244 2-5/16" 3-1/4" 9/16"
HC248 HS248 2-9/16" 3-1/2" 9/16"
HC252 HS252 2-13/16" 3-3/4" 9/16"
HC256 HS256 3-1/16" 4" 9/16"
HC264 - 3-9/16" 4-1/2" 9/16"
HC272 HS272 4-1/16" 5" 9/16"
HC280 HS280 4-5/8" 5-1/2" 9/16"

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
