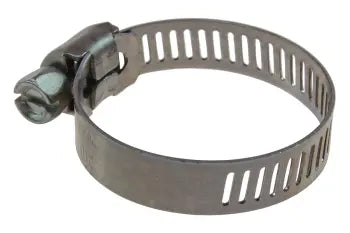

HC236 by Coilhose | Worm Drive Reusable Hose Clamp | 1-13/16"- 2-3/4" Size Range | 9/16" Band Width | Plated Steel | Pack of 10

HC236 by Coilhose | Worm Drive Reusable Hose Clamp | 1-13/16"- 2-3/4" Size Range | 9/16" Band Width | Plated Steel | Pack of 10

Save $24.60 Save $24.60
$61.50
$61.50 - $61.50
$61.50
$36.90
$36.90 - $36.90
$36.90
Coilhose Pneumatics - Worm Drive Clamps

Package Quantity: 10 Pack

Specifications for Variant SKU: HC236 Coilhose | 10 |
Material(s): Plated Steel
Minimum Clamp I.D.: 1.812
Maximum Clamp I.D.: 2.750
Overview:
  • Worm-Drive Reusable Hose Clamps facilitate quick, permanent in-field installation and repairs for a wide variety of applications. Makes custom hose assemblies possible using only a screwdriver. Also ideal for special situations requiring extra reinforcement. Band and housing are made of heavyduty stainless steel and the screw is available in cadmium-plated steel (Model HC) or stainless steel (Model HS). Available in a wide variety of sizes.
  • Can be removed and reused.
Features:
  • Tighten with hex or slotted screwdriver.
  • Stainless Steel offers enhanced corrosion resistance.
  • Made in USA

Part No.
Plated Steel		 Part No.
Stainless Steel		 Size Range Band Width
Min. Max.
HC104 HS104 7/32" 5/8" 5/16"
HC106 HS106 5/16" 7/8" 5/16"
HC112 HS112 9/16" 1-1/4" 5/16"
HC116 HS116 11/16" 1-1/2 5/16"
HC120 HS120 3/4" 1-3/4" 5/16"
HC206 HS206 3/8" 7/8" 9/16"
HC208 HS208 7/16" 1" 9/16"
HC210 HS210 9/16" 1-1/16" 9/16"
HC212 HS212 9/16" 1-1/4" 9/16"
HC216 HS216 11/16" 1-1/2" 9/16"
HC220 HS220 3/4" 1-3/4" 9/16"
HC224 HS224 1-1/16" 2" 9/16"
HC228 HS228 1-5/16" 2-1/4" 9/16"
HC232 HS232 1-9/16" 2-1/2" 9/16"
HC236 HS236 1-13/16" 2-3/4" 9/16"
HC240 HS240 2-1/16" 3" 9/16"
HC244 HS244 2-5/16" 3-1/4" 9/16"
HC248 HS248 2-9/16" 3-1/2" 9/16"
HC252 HS252 2-13/16" 3-3/4" 9/16"
HC256 HS256 3-1/16" 4" 9/16"
HC264 - 3-9/16" 4-1/2" 9/16"
HC272 HS272 4-1/16" 5" 9/16"
HC280 HS280 4-5/8" 5-1/2" 9/16"
