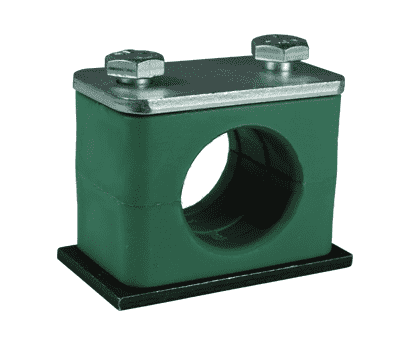

HHD12P Dixon Heavy Duty Series Pipe and Tube Clamp - 3/4" Pipe

HHD12P Dixon Valve Heavy Duty Series Pipe and Tube Clamp - 3/4" Pipe

Save $1.30 Save $1.30
$11.73
$11.73 - $11.73
$11.73
$10.43
$10.43 - $10.43
$10.43

Pipe and Tube Clamps - Heavy Duty Series Clamps - Steel & Polypropylene
Specifications for Variant SKU: HHD12P Dixon
Material(s): Polypropylene, Steel
Clamp Width: 1.18
Maximum Clamp I.D.: 0.75
Applications:
  • Use for standard hydraulics, general pipe construction, electric cables, etc.
Features:
  • Clamps are welded in place to secure the pipe or tubing.
  • Polypropylene cushions reduce wear due to vibration.
  • Standard and twin series clamps are recommended for systems with less than 1500 PSI without dynamic loads.
  • Heavy duty clamps are recommended for systems with greater than 1500 PSI operating pressure.
  • Kit includes clamp with weld plate, cover plate and bolts.
Part Number Size Length Width Height Weight (Lbs.)
HHD02P 1/8" Pipe ID 2.87" 1.18" 1.89" 0.6500
HHD04P 1/4" Pipe ID 2.87" 1.18" 1.89" 0.6500
HHD04T 1/4" Tube 2.87" 1.18" 1.89" 0.6500
HHD05T 5/16" Tube 2.87" 1.18" 1.89" 0.6500
HHD06P 3/8" Pipe ID 2.87" 1.18" 1.89" 0.6500
HHD06T 3/8" Tube 2.87" 1.18" 1.89" 0.6500
HHD08P 1/2" Pipe ID 3.35" 1.18" 2.52" 0.8200
HHD08T 1/2" Tube 2.87" 1.18" 1.89" 0.6500
HHD10T 5/8" Tube 2.87" 1.18" 1.89" 0.6500
HHD12P 3/4" Pipe ID 3.35" 1.18" 2.52" 0.8300
HHD12T 3/4" Tube 3.35" 1.18" 2.52" 0.8300
HHD14T 7/8" Tube 3.35" 1.18" 2.52" 0.8300
HHD16P 1" Pipe ID 3.94" 1.18" 2.99" 1.0400
HHD16T 1" Tube 3.35" 1.18" 2.52" 0.8300
HHD20P 1-1/4" Pipe ID 5.51" 1.77" 4.33" 1.0300
HHD20T 1-1/4" Tube 3.94" 1.18" 2.99" 1.0400
HHD24P 1-1/2" Pipe ID 5.51" 1.77" 4.33" 2.7600
HHD24T 1-1/2" Tube 3.94" 1.18" 2.99" 1.0300
HHD32P 2" Pipe ID 5.51" 1.77" 4.33" 2.6700
HHD32T 2" Tube 5.51" 1.77" 4.33" 22.6700
