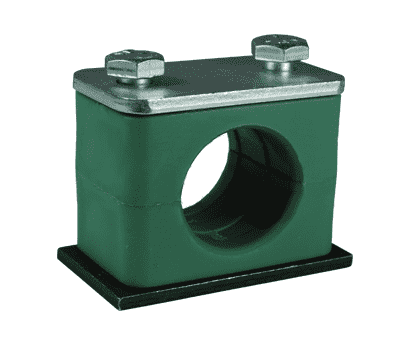

HHD12T Dixon Valve Heavy Duty Series Pipe and Tube Clamp - 3/4" Tube

Save $0.98 Save $0.98
Original price $9.78
Original price $9.78 - Original price $9.78
Original price $9.78
Current price $8.80
$8.80 - $8.80
Current price $8.80

Pipe and Tube Clamps - Heavy Duty Series Clamps - Steel & Polypropylene

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: HHD12T Dixon
Material(s): Polypropylene,Steel
Applications:
  • Use for standard hydraulics, general pipe construction, electric cables, etc.
Features:
  • Clamps are welded in place to secure the pipe or tubing.
  • Polypropylene cushions reduce wear due to vibration.
  • Standard and twin series clamps are recommended for systems with less than 1500 PSI without dynamic loads.
  • Heavy duty clamps are recommended for systems with greater than 1500 PSI operating pressure.
  • Kit includes clamp with weld plate, cover plate and bolts.
Part Number Size Length Width Height Weight (Lbs.)
HHD02P 1/8" Pipe ID 2.87" 1.18" 1.89" 0.6500
HHD04P 1/4" Pipe ID 2.87" 1.18" 1.89" 0.6500
HHD04T 1/4" Tube 2.87" 1.18" 1.89" 0.6500
HHD05T 5/16" Tube 2.87" 1.18" 1.89" 0.6500
HHD06P 3/8" Pipe ID 2.87" 1.18" 1.89" 0.6500
HHD06T 3/8" Tube 2.87" 1.18" 1.89" 0.6500
HHD08P 1/2" Pipe ID 3.35" 1.18" 2.52" 0.8200
HHD08T 1/2" Tube 2.87" 1.18" 1.89" 0.6500
HHD10T 5/8" Tube 2.87" 1.18" 1.89" 0.6500
HHD12P 3/4" Pipe ID 3.35" 1.18" 2.52" 0.8300
HHD12T 3/4" Tube 3.35" 1.18" 2.52" 0.8300
HHD14T 7/8" Tube 3.35" 1.18" 2.52" 0.8300
HHD16P 1" Pipe ID 3.94" 1.18" 2.99" 1.0400
HHD16T 1" Tube 3.35" 1.18" 2.52" 0.8300
HHD20P 1-1/4" Pipe ID 5.51" 1.77" 4.33" 1.0300
HHD20T 1-1/4" Tube 3.94" 1.18" 2.99" 1.0400
HHD24P 1-1/2" Pipe ID 5.51" 1.77" 4.33" 2.7600
HHD24T 1-1/2" Tube 3.94" 1.18" 2.99" 1.0300
HHD32P 2" Pipe ID 5.51" 1.77" 4.33" 2.6700
HHD32T 2" Tube 5.51" 1.77" 4.33" 22.6700
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
