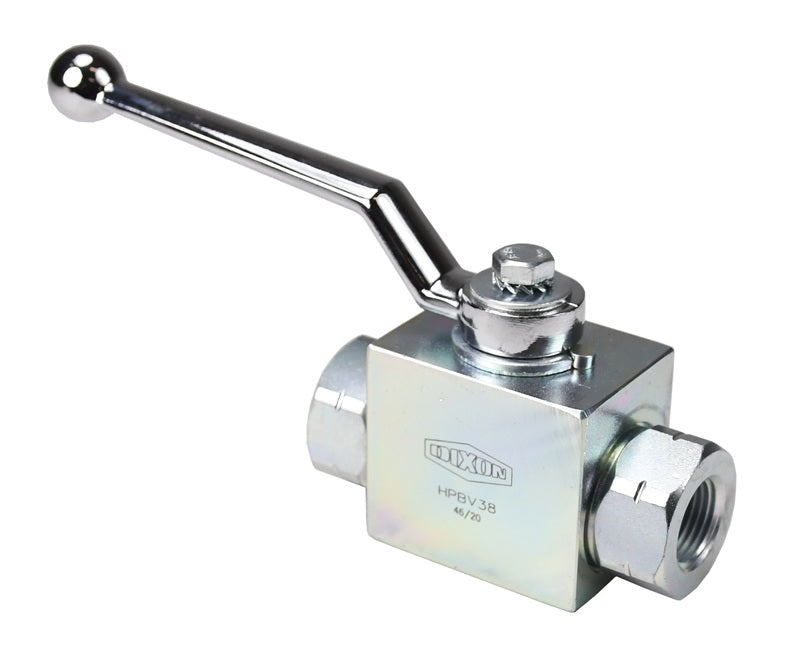

HPBV12SAEZPL by Dixon Valve | High Pressure Ball Valve | 1/2" Female SAE ORB x 1/2" Female SAE ORB | Clear Zinc Coated Carbon Steel

HPBV12SAEZPL by Dixon Valve | High Pressure Ball Valve | 1/2" Female SAE ORB x 1/2" Female SAE ORB | Clear Zinc Coated Carbon Steel

Save $3.34 Save $3.34
$30.05
$30.05 - $30.05
$30.05
$26.71
$26.71 - $26.71
$26.71

Dixon Valve & Coupling
High Pressure Ball Valve | Clear Zinc Coated Carbon Steel

These valves are commonly found in industrial plants and are most commonly used for hydraulic oil applications. They can be used anywhere a carbon steel ball valve is required. The clear zinc coating makes this ideal for environments where standard black oxide carbon steel high-pressure ball valve is not enough.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HPBV12SAEZPL Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Female O-Ring Boss, 1/2in Female O-Ring Boss, Some Ends Match
Material(s): Clear Zinc Coated Carbon Steel
Seal Material(s): Nitrile
Features:
  • 1/4" - 1" is a block body and full port.
  • 1-1/4" - 2" is a forged body and full port.
Materials:
  • Nitrile rubber O-rings.
  • POM (Polyacetal) ball seats.
  • Nickel plated ball.
  • Carbon steel body.
Specifications:
  • Temperature range: -20°F to 215°F (-28°C to 101°C)
  • 1/4" - 1/2" pressure rating: 7350 PSI
  • 3/4" - 2" pressure rating: 6000 PSI
Approvals:
  • RoHS compliant
Part Number Thread Type Size PSI
HPBV25ZPL Female NPT x Female NPT 1/4" 7350 PSI
HPBV38ZPL Female NPT x Female NPT 3/8" 7350 PSI
HPBV12ZPL Female NPT x Female NPT 1/2" 7350 PSI
HPBV34ZPL Female NPT x Female NPT 3/4" 6000 PSI
HPBV10ZPL Female NPT x Female NPT 1" 6000 PSI
HPBV125ZPL Female NPT x Female NPT 1-1/4" 6000 PSI
HPBV150ZPL Female NPT x Female NPT 1-1/2" 6000 PSI
HPBV200ZPL Female NPT x Female NPT 2" 6000 PSI

HPBV25SAEZPL Female SAE ORB x Female SAE ORB 1/4" 7350 PSI
HPBV38SAEZPL Female SAE ORB x Female SAE ORB 3/8" 7350 PSI
HPBV12SAEZPL Female SAE ORB x Female SAE ORB 1/2" 7350 PSI
HPBV34SAEZPL Female SAE ORB x Female SAE ORB 3/4" 6000 PSI
HPBV10SAEZPL Female SAE ORB x Female SAE ORB 1" 6000 PSI
HPBV125SAEZPL Female SAE ORB x Female SAE ORB 1-1/4" 6000 PSI
HPBV150SAEZPL Female SAE ORB x Female SAE ORB 1-1/2" 6000 PSI
HPBV200SAEZPL Female SAE ORB x Female SAE ORB 2" 6000 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
