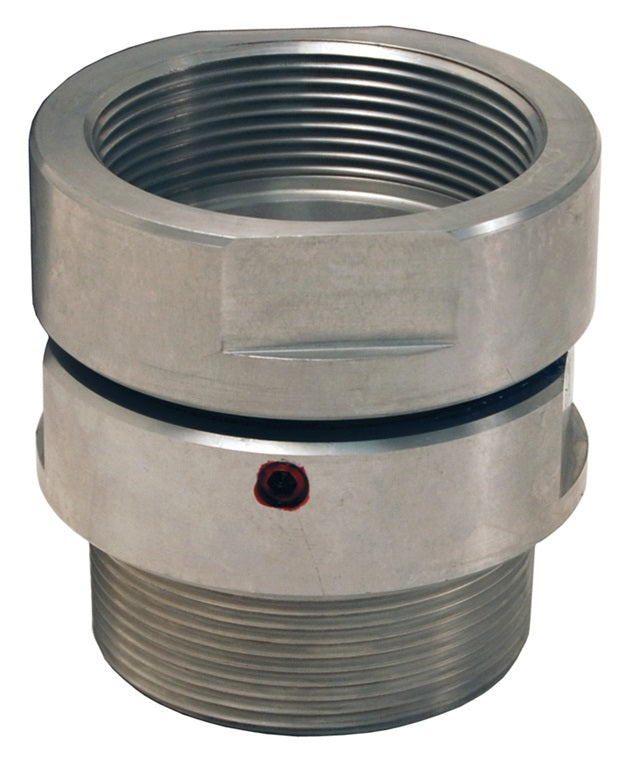

HS400AL MannTek by Dixon Valve | Hose Swivel | 4" Male NPT x 4" Female NPT | Aluminum

HS400AL MannTek by Dixon Valve | Hose Swivel | 4" Male NPT x 4" Female NPT | Aluminum

Save $122.84 Save $122.84
$1,105.53
$1,105.53 - $1,105.53
$1,105.53
$982.69
$982.69 - $982.69
$982.69

Dixon Valve
Tank Truck | MannTek Hose Swivel

Allows the hose to relax to its natural rest position while allowing freedom of movement without adding torque stress at the point of connection.
Specifications for Variant SKU: HS400AL Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 4in Male NPT, 4in Female NPT
Material(s): Aluminum
Seal Material(s): Viton/FKM
Features:
  • Simple design.
  • Low maintenance.
Construction:
  • Consists of two body halves, ball bearings, and a washer.
Specifications:
  • Working pressure: 150 PSI.
  • Maximum temperature: 300°F (149°C).
  • Male NPT x female NPT threaded connections.
Aluminum
Part		 316 Stainless Steel
Part		 Male NPT x Female NPT Size
HS075SS HS075AL 3/4"
HS100SS HS100AL 1"
HS150SS HS150AL 1-1/2"
HS200SS HS200AL 2"
HS300SS HS300AL 3"
HS400SS HS400AL 4"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
