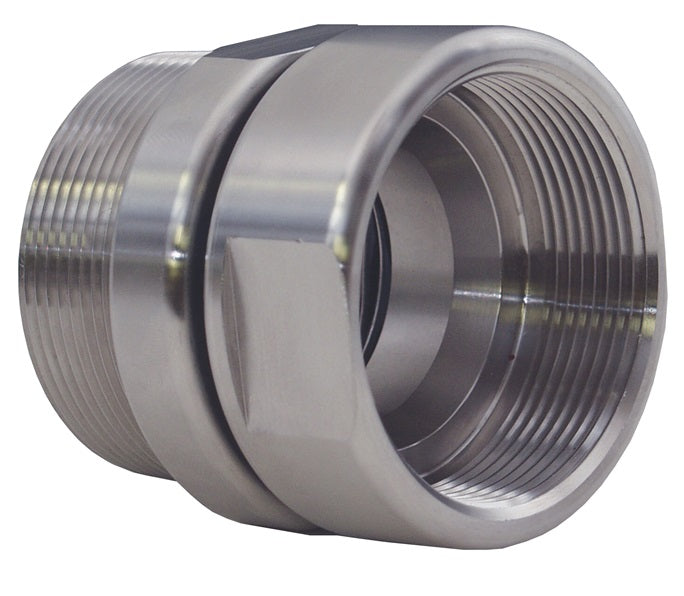

HS400SS MannTek by Dixon Valve | Hose Swivel | 4" Male NPT x 4" Female NPT | 316 Stainless Steel

HS400SS MannTek by Dixon Valve | Hose Swivel | 4" Male NPT x 4" Female NPT | 316 Stainless Steel

Save $228.80 Save $228.80
$2,059.20
$2,059.20 - $2,059.20
$2,059.20
$1,830.40
$1,830.40 - $1,830.40
$1,830.40

Dixon Valve
Tank Truck | MannTek Hose Swivel

Allows the hose to relax to its natural rest position while allowing freedom of movement without adding torque stress at the point of connection.
Specifications for Variant SKU: HS400SS Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 4in Male NPT, 4in Female NPT
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Simple design.
  • Low maintenance.
Construction:
  • Consists of two body halves, ball bearings, and a washer.
Specifications:
  • Working pressure: 150 PSI.
  • Maximum temperature: 300°F (149°C).
  • Male NPT x female NPT threaded connections.
Aluminum
Part		 316 Stainless Steel
Part		 Male NPT x Female NPT Size
HS075SS HS075AL 3/4"
HS100SS HS100AL 1"
HS150SS HS150AL 1-1/2"
HS200SS HS200AL 2"
HS300SS HS300AL 3"
HS400SS HS400AL 4"
