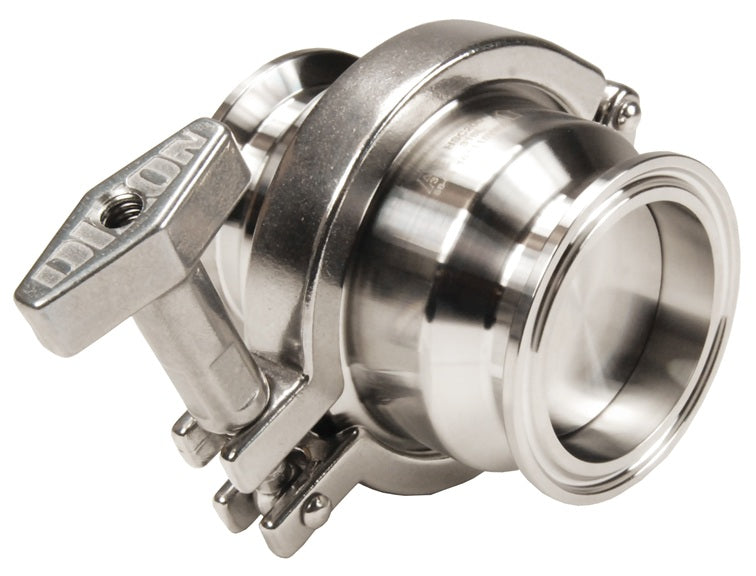

HSCV050 Dixon Valve HSC Spring Check Valve - 1/2" Clamp Connection - FKM Gasket - 316L Stainless Steel

Name: HSCV050 Dixon Valve HSC Spring Check Valve - 1/2" Clamp Connection - FKM Gasket - 316L Stainless Steel
Brand: Dixon
SKU: HSCV050 Dixon
Price: 178.28 USD
Availability: InStock

$0.00 - $0.00

$0.00

$178.28

$178.28 - $178.28

$178.28

Dixon Sanitary Fittings HSC Spring Check Valve - Clamp Connection - 316L Stainless Steel

Designed to prevent reverse flow. The concentric design makes them ideal for vertical applications.

Quantity

Specifications for Variant SKU: HSCV050 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/2in Sanitary Clamp End, 1/2in Sanitary Clamp End, Some Ends Match
Material(s):	316L Stainless Steel
Seal Material(s):	Viton/FKM

Features:
Machined from solid bar Standard O-ring (FKM) and gasket seal design Can be serviced in field (no special tools required) Finish: sanitary polish 32 Ra Temperature Range: 15° F to 200° F

Part Number	Size	Cracking Pressure	Max. Operating Pressure
HSCV050	1/2"	10.0 PSI	145 PSI
HSCV075	3/4"	4.0 PSI	145 PSI
HSCV100	1"	2.5 PSI	145 PSI
HSCV150	1-1/2"	1.0 PSI	145 PSI
HSCV200	2"	1.5 PSI	145 PSI
HSCV250*	2-1/2"	0.8 PSI	145 PSI
HSCV300*	3"	0.5 PSI	145 PSI
HSCV400*	4"	0.4 PSI	145 PSI

* CF8M (plunger)
