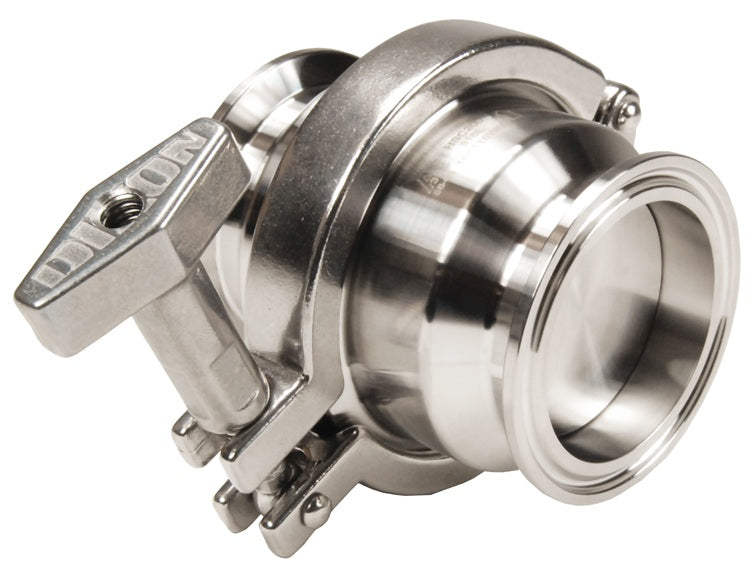

HSCV250 Dixon Valve HSC Spring Check Valve - 2-1/2" Clamp Connection - FKM Gasket - 316L Stainless Steel

HSCV250 Dixon Valve HSC Spring Check Valve - 2-1/2" Clamp Connection - FKM Gasket - 316L Stainless Steel

Save $252.57 Save $252.57
$631.42
$631.42 - $631.42
$631.42
$378.85
$378.85 - $378.85
$378.85

Dixon Sanitary Fittings HSC Spring Check Valve - Clamp Connection - 316L Stainless Steel

Designed to prevent reverse flow. The concentric design makes them ideal for vertical applications.
Specifications for Variant SKU: HSCV250 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Sanitary Clamp End, 2-1/2in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Machined from solid bar
  • Standard O-ring (FKM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
HSCV050 1/2" 10.0 PSI 145 PSI
HSCV075 3/4" 4.0 PSI 145 PSI
HSCV100 1" 2.5 PSI 145 PSI
HSCV150 1-1/2" 1.0 PSI 145 PSI
HSCV200 2" 1.5 PSI 145 PSI
HSCV250* 2-1/2" 0.8 PSI 145 PSI
HSCV300* 3" 0.5 PSI 145 PSI
HSCV400* 4" 0.4 PSI 145 PSI

* CF8M (plunger)
