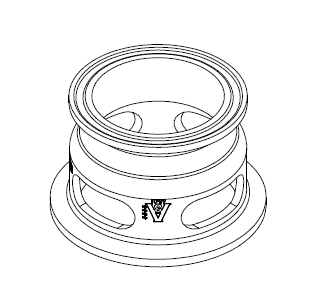

HSG-B400CA Dixon Valve Replacement Clamp Body for HSG Series Sight Glass - 4" - 316L Stainless Steel

HSG-B400CA Dixon Valve Replacement Clamp Body for HSG Series Sight Glass - 4" - 316L Stainless Steel

$226.81 - $226.81
$226.81
$229.08
$229.08 - $229.08
$229.08

Dixon Sanitary Fittings HSG Sight Glass Replacement Part
Specifications for Variant SKU: HSG-B400CA Dixon
Item Part Number Description Material Qty
1 HSG-B050CA 1/2" Body, Clamp 316L Stainless Steel 2
1 HSG-B075CA 3/4" Body, Clamp 316L Stainless Steel 2
1 HSG-B100CA 1" Body, Clamp 316L Stainless Steel 2
1 HSG-B150CA 1-1/2" Body, Clamp 316L Stainless Steel 2
1 HSG-B200CA 2" Body, Clamp 316L Stainless Steel 2
1 HSG-B250CA 2-1/2" Body, Clamp 316L Stainless Steel 2
1 HSG-B300CA 3" Body, Clamp 316L Stainless Steel 2
1 HSG-B400CA 4" Body, Clamp 316L Stainless Steel 2
1 HSG-B600CA 6" Body, Clamp 316L Stainless Steel 2
2 -PART OF REPAIR KIT-
3 HSG-POLY-050 1/2" Insert Polycarbonate 1
3 HSG-POLY-075 3/4" Insert Polycarbonate 1
3 HSG-POLY-100 1" Insert Polycarbonate 1
3 HSG-POLY-150 1-1/2" Insert Polycarbonate 1
3 HSG-POLY-200 2" Insert Polycarbonate 1
3 HSG-POLY-250 2-1/2" Insert Polycarbonate 1
3 HSG-POLY-300 3" Insert Polycarbonate 1
3 HSG-POLY-400 4" Insert Polycarbonate 1
3 HSG-POLY-600 6" Insert Polycarbonate 1
4 13MHP100-150 1/2", 3/4", & 1" Clamp, PTFE Seals CF8 1
4 13MHP200 1-1/2" Clamp, PTFE Seals CF8 1
4 13MHP250 2-1/2" Clamp, PTFE Seals CF8 1
4 13MHP300 3" Clamp, PTFE Seals CF8 1
4 13MHPV300 3" Clamp, PTFE Seals CF8 1
4 13MHPV400 4" Clamp, PTFE Seals CF8 1
4 13MHP800 6" Clamp, PTFE Seals CF8 1
4 13MHHM100-150SN 1" Clamp, EPDM/FKM Seals CF8 1
4 13MHHM200SN 1-1/2" Clamp, EPDM/FKM Seals CF8 1
4 13MHHM250SN 2" Clamp, EPDM/FKM Seals CF8 1
4 13MHHM300SN 2-1/2" Clamp, EPDM/FKM Seals CF8 1
4 13MHHV300 3" Clamp, EPDM/FKM Seals CF8 1
4 13MHHV400 4" Clamp, EPDM/FKM Seals CF8 1
4 13MHHM800SN 6" Clamp, EPDM/FKM Seals CF8 1
