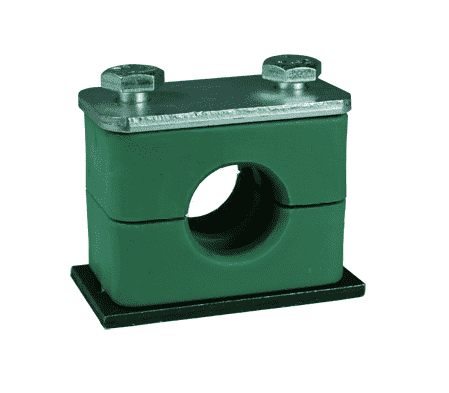

HST04T Dixon Standard Series Pipe and Tube Clamp - 1/4" Tube

HST04T Dixon Valve Standard Series Pipe and Tube Clamp - 1/4" Tube

Save $0.44 Save $0.44
$3.93
$3.93 - $3.93
$3.93
$3.49
$3.49 - $3.49
$3.49

Pipe and Tube Clamps - Standard Series Clamps - Steel & Polypropylene
Specifications for Variant SKU: HST04T Dixon
Material(s): Polypropylene, Steel
Clamp Width: 1.18
Maximum Clamp I.D.: 0.25
Applications:
  • Use for standard hydraulics, general pipe construction, electric cables, etc.
Features:
  • Clamps are welded in place to secure the pipe or tubing.
  • Polypropylene cushions reduce wear due to vibration.
  • Standard and twin series clamps are recommended for systems with less than 1500 PSI without dynamic loads.
  • Heavy duty clamps are recommended for systems with greater than 1500 PSI operating pressure.
  • Kit includes clamp with weld plate, cover plate and bolts.
Part Number Size Length Width Height Weight (Lbs.)
HST02P 1/8" Pipe ID 1.65" 1.18" 1.30" 0.2100
HST04P 1/4" Pipe ID 1.89" 1.18" 1.54" 0.2000
HST04T 1/4" Tube 1.65" 1.18" 1.30" 0.1700
HST05T 5/16" Tube 1.65" 1.18" 1.30" 0.1700
HST06P 3/8" Pipe ID 1.89" 1.18" 1.54" 0.2000
HST06T 3/8" Tube 1.65" 1.18" 1.30" 0.1700
HST08P 1/2" Pipe ID 2.17" 1.18" 1.61" 0.2500
HST08T 1/2" Tube 1.89" 1.18" 1.54" 0.2000
HST10T 5/8" Tube 1.89" 1.18" 1.54" 0.2000
HST12P 3/4" Pipe ID 2.44" 1.18" 1.89" 0.2900
HST12T 3/4" Tube 2.17" 1.18" 1.61" 0.2400
HST14T 7/8" Tube 2.17" 1.18" 1.61" 0.2500
HST16P 1" Pipe ID 2.91" 1.18" 2.52" 0.3900
HST16T 1" Tube 2.17" 1.18" 1.61" 0.2400
HST20P 1-1/4" Pipe ID 2.91" 1.18" 2.52" 0.3700
HST20T 1-1/4" Tube 2.91" 1.18" 2.52" 0.4000
HST24P 1-1/2" Pipe ID 3.46" 1.18" 2.83" 0.4700
HST24T 1-1/2" Tube 2.91" 1.18" 2.52" 0.3800
HST32T 2" Tube 3.46" 1.18" 2.83" 0.4600
