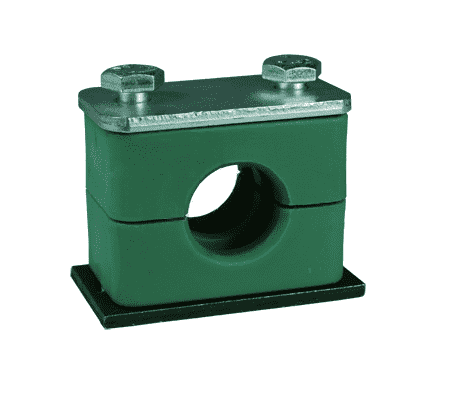

HST08T Dixon Standard Series Pipe and Tube Clamp - 1/2" Tube

HST08T Dixon Valve Standard Series Pipe and Tube Clamp - 1/2" Tube

Save $0.30 Save $0.30
$3.97
$3.97 - $3.97
$3.97
$3.67
$3.67 - $3.67
$3.67

Pipe and Tube Clamps - Standard Series Clamps - Steel & Polypropylene
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HST08T Dixon
Material(s): Polypropylene, Steel
Clamp Width: 1.18
Maximum Clamp I.D.: 0.5
Applications:
  • Use for standard hydraulics, general pipe construction, electric cables, etc.
Features:
  • Clamps are welded in place to secure the pipe or tubing.
  • Polypropylene cushions reduce wear due to vibration.
  • Standard and twin series clamps are recommended for systems with less than 1500 PSI without dynamic loads.
  • Heavy duty clamps are recommended for systems with greater than 1500 PSI operating pressure.
  • Kit includes clamp with weld plate, cover plate and bolts.
Part Number Size Length Width Height Weight (Lbs.)
HST02P 1/8" Pipe ID 1.65" 1.18" 1.30" 0.2100
HST04P 1/4" Pipe ID 1.89" 1.18" 1.54" 0.2000
HST04T 1/4" Tube 1.65" 1.18" 1.30" 0.1700
HST05T 5/16" Tube 1.65" 1.18" 1.30" 0.1700
HST06P 3/8" Pipe ID 1.89" 1.18" 1.54" 0.2000
HST06T 3/8" Tube 1.65" 1.18" 1.30" 0.1700
HST08P 1/2" Pipe ID 2.17" 1.18" 1.61" 0.2500
HST08T 1/2" Tube 1.89" 1.18" 1.54" 0.2000
HST10T 5/8" Tube 1.89" 1.18" 1.54" 0.2000
HST12P 3/4" Pipe ID 2.44" 1.18" 1.89" 0.2900
HST12T 3/4" Tube 2.17" 1.18" 1.61" 0.2400
HST14T 7/8" Tube 2.17" 1.18" 1.61" 0.2500
HST16P 1" Pipe ID 2.91" 1.18" 2.52" 0.3900
HST16T 1" Tube 2.17" 1.18" 1.61" 0.2400
HST20P 1-1/4" Pipe ID 2.91" 1.18" 2.52" 0.3700
HST20T 1-1/4" Tube 2.91" 1.18" 2.52" 0.4000
HST24P 1-1/2" Pipe ID 3.46" 1.18" 2.83" 0.4700
HST24T 1-1/2" Tube 2.91" 1.18" 2.52" 0.3800
HST32T 2" Tube 3.46" 1.18" 2.83" 0.4600
