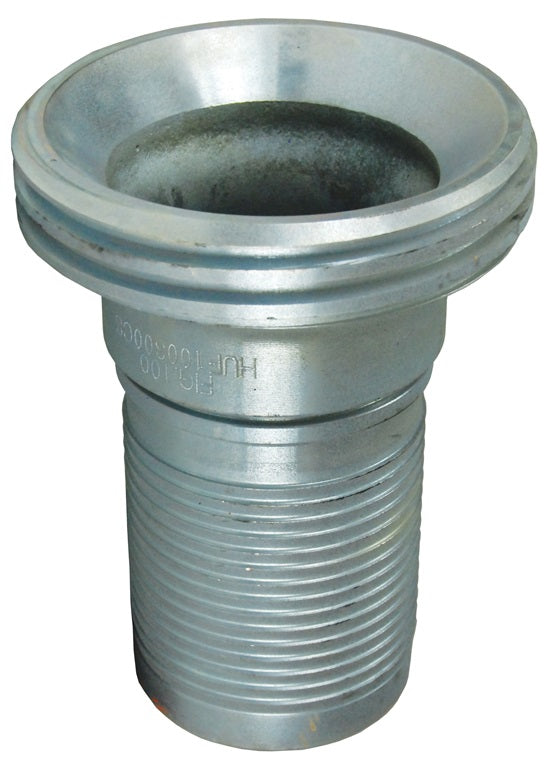

HUF100300CS by Dixon Valve | Boss® LPS Frac Fitting | Figure 100 | Female Fitting | 3" Size | Iron

Save $13.85

$124.62

$124.62 - $124.62

$124.62

$110.77

$110.77 - $110.77

$110.77

Dixon Valve
Boss® | LPS Frac Fitting | Female Fitting

Used in the fast paced transfer of water and sand slurry at hydraulic fracturing sites.

Quantity

Specifications for Variant SKU: HUF100300CS Dixon
Brand:	Boss
Shape (Orientation):	Straight
Ends Configuration:	3in Female Frac Fitting, 3in Hose Barb
Material(s):	Iron

Compatibility & Interchange Data:
Interchangeable with current fittings; phase them into your current operation. Designed to work with Dixon King Crimp Ferrules.
Features:
One-piece design eliminates leak path experienced with two-piece threaded systems. Durable and safe with reliable hose retention when crimped as specified.
Construction:
Machined Iron to ASTM standards. All stems are zinc plated.
Specifications:
400 PSI working pressure at 70°F (21°C) for 3" and 4" sizes; 4:1 safety factor (SF)1 230 PSI working pressure at 70°F (21°C) for 6" size; 4:1 safety factor (SF) 150 PSI working pressure at 70°F (21°C) for 8" size; 3:1 safety factor (SF) 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 3" size uses standard crimp ferrules 4" size requires heavy duty (HD) crimp ferrules, CF400-6CSHD through CF400-16CSHD and heavy duty stems. NOTE: Water and petroleum transfer hoses rated from 100 to 300 PSI WP (4:1 SF) have excellent test results with the standard King Crimp ferrules CF400-xxCS.
Safety Notes:
400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 2" and 3" sizes using standard crimp ferrules.

Part Number	Size	Figure
HUF100300CS	3"	100
HUF206300CS	3"	206
HUF100400CS	4"	100
HUF206400CS	4"	206
HUFALL600CS*	6"	100/206
HUFALL800CS*	8"	100/206

* Meets both figure 100 and 206 dimensional specifications.
