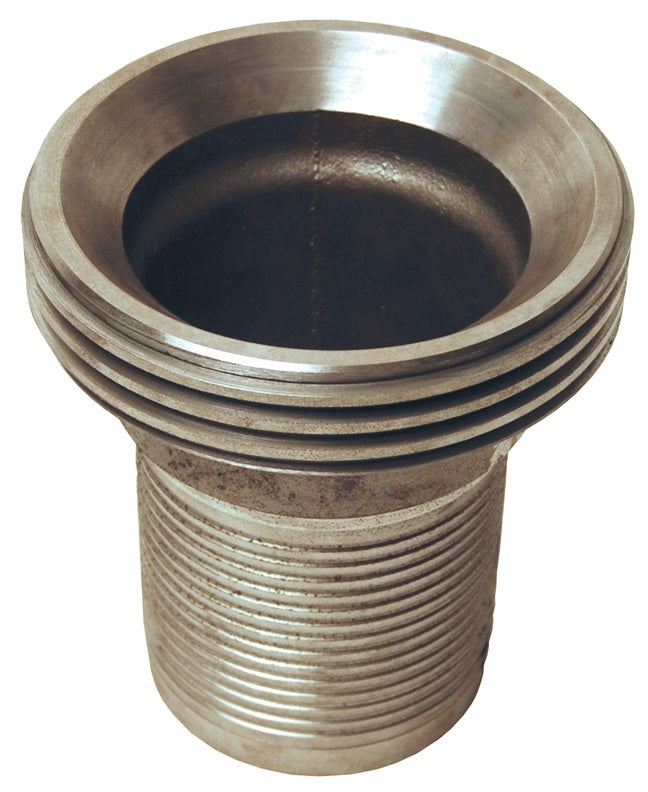

HUF206400CS by Dixon Valve | Boss® LPS Frac Fitting | Figure 206 | Female Fitting | 4" Size | Iron

HUF206400CS by Dixon Valve | Boss® LPS Frac Fitting | Figure 206 | Female Fitting | 4" Size | Iron

Save $61.03 Save $61.03
$152.58
$152.58 - $152.58
$152.58
$91.55
$91.55 - $91.55
$91.55

Dixon Valve
Boss® | LPS Frac Fitting | Female Fitting

Used in the fast paced transfer of water and sand slurry at hydraulic fracturing sites.
Specifications for Variant SKU: HUF206400CS Dixon
Brand: Boss
Shape (Orientation): Straight
Ends Configuration: 4in Female Frac Fitting, 4in Hose Barb
Material(s): Iron
Compatibility & Interchange Data:
  • Interchangeable with current fittings; phase them into your current operation.
  • Designed to work with Dixon King Crimp Ferrules.
Features:
  • One-piece design eliminates leak path experienced with two-piece threaded systems.
  • Durable and safe with reliable hose retention when crimped as specified.
Construction:
  • Machined Iron to ASTM standards.
  • All stems are zinc plated.
Specifications:
  • 400 PSI working pressure at 70°F (21°C) for 3" and 4" sizes; 4:1 safety factor (SF)1
  • 230 PSI working pressure at 70°F (21°C) for 6" size; 4:1 safety factor (SF)
  • 150 PSI working pressure at 70°F (21°C) for 8" size; 3:1 safety factor (SF)
  • 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with:
    • 3" size uses standard crimp ferrules
    • 4" size requires heavy duty (HD) crimp ferrules, CF400-6CSHD through
    • CF400-16CSHD and heavy duty stems.
  • NOTE: Water and petroleum transfer hoses rated from 100 to 300 PSI WP (4:1 SF) have excellent test results with the standard King Crimp ferrules CF400-xxCS.
Safety Notes:
  • 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 2" and 3" sizes using standard crimp ferrules.
Part Number Size Figure
HUF100300CS 3" 100
HUF206300CS 3" 206
HUF100400CS 4" 100
HUF206400CS 4" 206
HUFALL600CS* 6" 100/206
HUFALL800CS* 8" 100/206

* Meets both figure 100 and 206 dimensional specifications.
