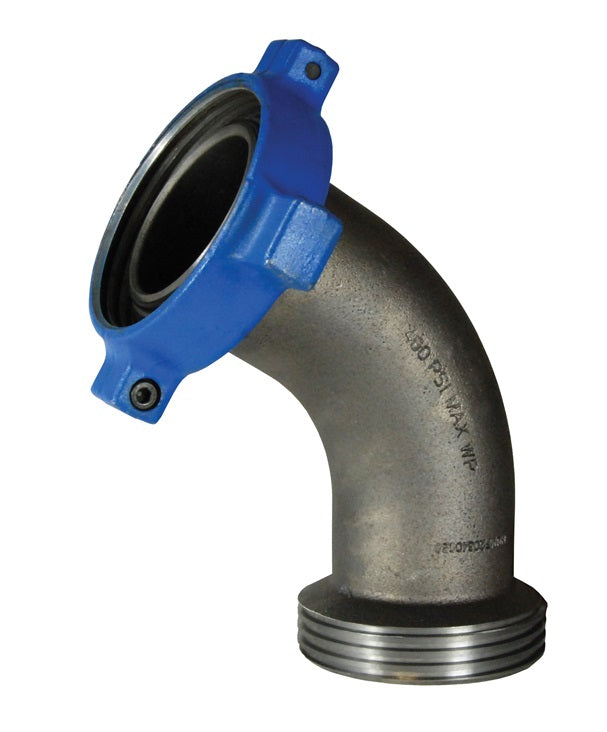

HUMF20640060 by Dixon Valve | Boss® LPS One-Piece Hammer Union Adapter | 60° Elbow | Figure 206 | 4" Size | Male Hammer Union x Female Hammer Union | Ductile Iron

Save $50.88

$457.93

$457.93 - $457.93

$457.93

$407.05

$407.05 - $407.05

$407.05

Dixon Valve
Boss® | LPS One-Piece Hammer Union Elbow Adapter | Male Hammer Union x Female Hammer Union

Used in the transfer of water, brine, water-based chemicals, water-based acids and gelatinous proppant (sand) slurry used at hydraulic fracturing sites.

Quantity

Specifications for Variant SKU: HUMF20640060 Dixon
Brand:	Boss
Shape (Orientation):	60 Degree

Features:
No welds or pipe threads to deteriorate to cause premature leakage. Two-piece nut it pinned and bolted for perfect alignment. Figure 206 threads are interchangeable with other reliable brands. Easy to weld to 12" pipe manifolds. Used with HU200400RN two-piece nut.
Material:
Ductile Iron
Specifications:
Iron adapter meets ASTM standards. Forged Steel nut meets AISI standards.

Part Number	Size	Figure	Description
HUMF20640045	4"	206	Male Hammer Union x Female Hammer Union \| 45° Elbow
HUMF20640060	4"	206	Male Hammer Union x Female Hammer Union \| 60° Elbow
HUMF20640080	4"	206	Male Hammer Union x Female Hammer Union \| 80° Elbow
HUMF20640090	4"	206	Male Hammer Union x Female Hammer Union \| 90° Elbow
