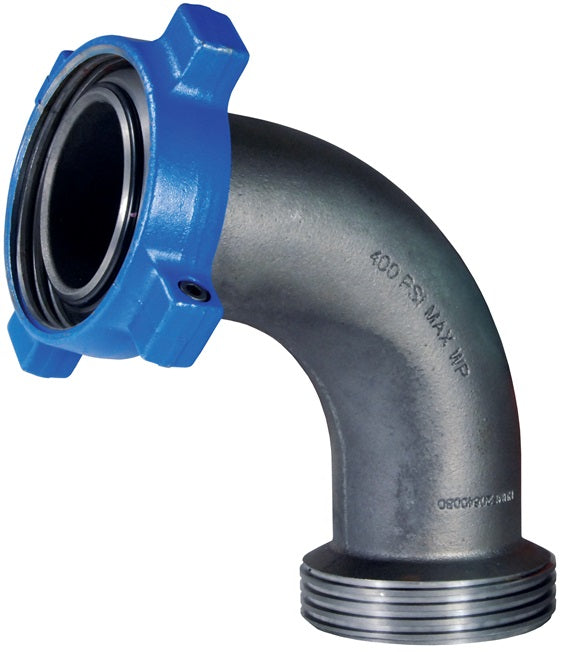

HUMF20640080 by Dixon Valve | Boss® LPS One-Piece Hammer Union Adapter | 80° Elbow | Figure 206 | 4" Size | Male Hammer Union x Female Hammer Union | Ductile Iron

Save $50.03

$450.30

$450.30 - $450.30

$450.30

$400.27

$400.27 - $400.27

$400.27

Dixon Valve
Boss® | LPS One-Piece Hammer Union Elbow Adapter | Male Hammer Union x Female Hammer Union

Used in the transfer of water, brine, water-based chemicals, water-based acids and gelatinous proppant (sand) slurry used at hydraulic fracturing sites.

Quantity

Specifications for Variant SKU: HUMF20640080 Dixon
Brand:	Boss
Shape (Orientation):	80 Degree

Features:
No welds or pipe threads to deteriorate to cause premature leakage. Two-piece nut it pinned and bolted for perfect alignment. Figure 206 threads are interchangeable with other reliable brands. Easy to weld to 12" pipe manifolds. Used with HU200400RN two-piece nut.
Material:
Ductile Iron
Specifications:
Iron adapter meets ASTM standards. Forged Steel nut meets AISI standards.

Part Number	Size	Figure	Description
HUMF20640045	4"	206	Male Hammer Union x Female Hammer Union \| 45° Elbow
HUMF20640060	4"	206	Male Hammer Union x Female Hammer Union \| 60° Elbow
HUMF20640080	4"	206	Male Hammer Union x Female Hammer Union \| 80° Elbow
HUMF20640090	4"	206	Male Hammer Union x Female Hammer Union \| 90° Elbow

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
